The global transition towards renewable energy, particularly solar power, demands continuous innovation in supporting infrastructure. Critical to this infrastructure are robust protection devices ensuring system safety, reliability, and efficiency. Addressing the evolving needs of photovoltaic (PV) applications, Bourns, Inc., a world-renowned leader in the design and manufacture of essential electronic components, including power, protection, and sensing solutions, has introduced its advanced PF-PVC150R Series POWrFuse™ high-power fuses. This series marks a significant step forward, offering elevated voltage and current ratings specifically engineered to meet the stringent requirements of modern utility-scale and commercial solar installations.
Meeting the 1500 VDC Imperative
A dominant trend in solar energy is the shift towards higher DC system voltages. Moving beyond the previously common 1000 VDC standard, 1500 VDC architectures are rapidly becoming the new benchmark, especially for large-scale deployments. This shift is driven by compelling advantages: higher system voltages significantly improve overall energy efficiency by reducing I²R power losses in cables and connections, and simultaneously lowering system costs. Higher voltages allow for longer string lengths, reducing the number of combiner boxes, wiring runs, and inverters required per megawatt of installed capacity.

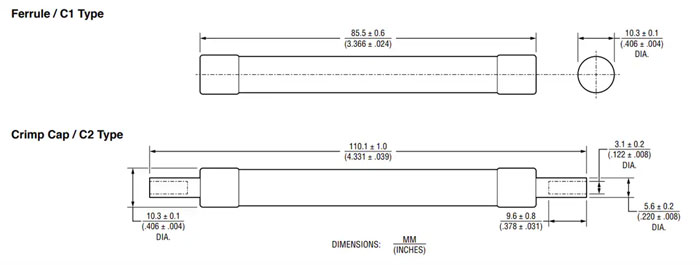

PF-PVC150R Mechanical Diagram
"The solar industry's clear trajectory is towards higher voltages to maximize efficiency and minimize system costs, a crucial factor for utility-scale and commercial projects," stated Jennifer Joseph, Vice President of the Protection Business Unit at Bourns. "As the standard evolves from 1000 VDC to 1500 VDC, the Bourns® PF-PVC150R Series POWrFuse™ is purpose-built for this transition. It empowers designers to achieve cost reductions through fewer inverters and less wiring. And the inherent efficiency gains from reduced power losses enhance the overall performance and economics of the solar farm or commercial installation."
Engineered for Superior gPV Protection
The core function of the PF-PVC150R Series is to provide reliable overcurrent protection within PV systems. It achieves this by being meticulously designed to comply with the demanding UL 248-19 standard for photovoltaic (gPV) fuse protection. This standard specifies critical performance and safety criteria for fuses used in DC solar applications, ensuring they can reliably interrupt high fault currents under the unique conditions encountered in PV arrays.
The PF-PVC150R Series directly addresses the needs of 1500 VDC systems with its impressive voltage rating. Furthermore, it offers an expanded current range from 4 A to 30 A. This broad coverage provides designers with greater flexibility, allowing a single fuse series to protect a wider variety of PV string currents and inverter inputs, simplifying the bill of materials (BOM) and streamlining the design process across different project scales and configurations.
Enhanced Performance and Design Flexibility
Beyond meeting voltage and current requirements, the Bourns® PF-PVC150R Series incorporates features designed to maximize system performance and ease of integration:
• High Interrupting Rating (IR): With an interrupting capacity of up to 50 kA, this fuse is engineered to safely clear very high levels of fault current. This capability is vital for protecting expensive downstream equipment like inverters and ensuring overall system safety, particularly in large arrays where fault energy can be substantial. A high IR rating also contributes to system reliability by guaranteeing the fuse will operate effectively under severe short-circuit conditions.
• Optimized for Power Density: The design inherently supports higher power density within combiner boxes and other system components. By enabling the use of higher voltages and currents within a compact form factor, these fuses contribute to more efficient use of valuable space in solar installations.
• Versatile Packaging Options: Recognizing the diverse installation requirements in the solar industry, Bourns offers the PF-PVC150R Series in multiple termination styles. These include industry-standard ferrule (insertion type) and crimp cap versions. This flexibility ensures compatibility with various holder designs and simplifies installation within different combiner box layouts, accommodating both newer, larger solar modules and longer string configurations common in modern utility-scale projects. The choice of termination allows for optimal mechanical connection and electrical contact integrity.
Meet the Environmental Standards
Sustainability extends beyond energy generation to the components used. The Bourns® PF-PVC150R Series POWrFuse™ high-power fuses are designed and manufactured with environmental responsibility in mind. The entire series complies with the stringent EU RoHS Directive 2015/863 (Restriction of Hazardous Substances), limiting the use of specific hazardous materials. Furthermore, they are classified as halogen-free products. Bourns adheres to rigorous criteria for halogen-free designation:
• Bromine content ≤ 900 ppm
• Chlorine content ≤ 900 ppm
• Total Bromine + Chlorine content ≤ 1500 ppm
This commitment reduces the potential environmental impact during manufacturing and end-of-life disposal, aligning with the green ethos of the solar industry.
Availability and Target Applications
The Bourns® PF-PVC150R Series POWrFuse™ high-power fuses are now available for immediate order through Bourns' global network of authorized distributors. These fuses are ideally suited for a wide range of demanding PV applications, including:
• Utility-Scale Solar Farms
• Large Commercial and Industrial (C&I) Rooftop Installations
• Ground-Mount Solar Arrays
• PV Combiner Boxes (Main and String Fuse Protection)
• Inverter Input Protection
• Energy Storage System (ESS) DC Coupling Protection
Conclusion
As the solar energy sector continues its rapid growth and technological evolution, the demand for robust, reliable, and high-performance protection solutions intensifies. The Bourns® PF-PVC150R Series POWrFuse™ represents a critical response to this demand. By offering enhanced 1500 VDC voltage ratings, a broad 4-30 A current range, a high 50 kA interrupting capacity, flexible termination options, and compliance with key environmental standards (RoHS and Halogen-Free), this series provides system designers and installers with a superior fuse solution. It directly supports the industry's drive towards higher efficiency, lower levelized cost of energy (LCOE), and improved system economics through reduced component counts and minimized power losses. For engineers seeking reliable gPV protection aligned with the latest UL 248-19 standards for next-generation solar installations, the PF-PVC150R Series stands as a compelling choice from a trusted leader in protection electronic components.
