Power semiconductor devices play a pivotal role in the global home appliance market's relentless pursuit of higher efficiency, greater reliability, and more competitive costs. STMicroelectronics (ST) unveiled a significant addition to its STPOWER portfolio – the STGWA30IH160DF2 IGBT. As the inaugural 1600V-rated device in the second-generation IH series, it brings substantial energy efficiency improvements and system optimization to mainstream high-power appliances like induction cookers, microwave ovens, and rice cookers, thanks to its breakthrough performance combination.

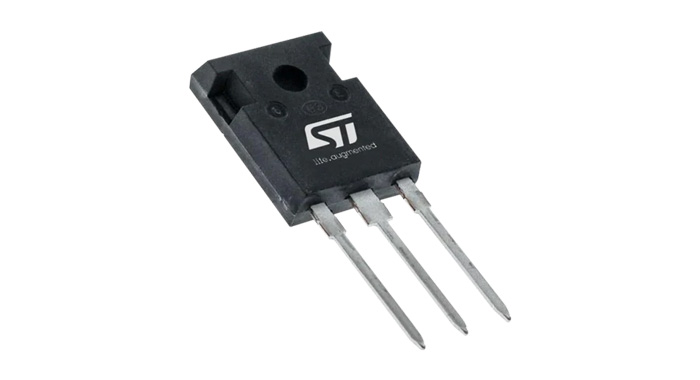

About STGWA30IH160DF2
The STGWA30IH160DF2 is a 1600 V IH2 series IGBT that uses an advanced proprietary trench gate field stop structure. Its conduction and switching loss performance is optimized for soft commutation. A freewheeling diode with a low forward voltage drop is integrated. Therefore, this product is designed for any resonant and soft switching application to maximize efficiency.
Source from Internet
Exceptional Voltage and Thermal Management: The device boasts a high 1600V rated breakdown voltage (Vces), easily handling grid fluctuations and voltage stress during switching. Simultaneously, its maximum junction temperature (Tjmax) of 175°C, coupled with excellent thermal resistance (Rth), guarantees efficient heat dissipation under the rated current (IC) of 30A. This forms a solid foundation for long-term stable operation in the demanding environments typical of home appliances.
Advanced Trench Gate Field-Stop (TGFS) Technology: This is key to the performance leap. The TGFS structure achieves an optimal balance between high breakdown voltage and an extremely low saturation voltage drop (Vce(sat), with a typical value of only 1.77V @ IC=30A. Lower conduction voltage directly translates to significant reduction in conduction losses, boosting overall efficiency. Furthermore, TGFS technology effectively suppresses tail current during turn-off, substantially reducing turn-off energy loss (Eoff), which is critical for high-frequency switching applications.
Optimized Anti-Parallel Diode: The co-packaged diode is not just a supporting component. Its low forward voltage drop (Vf) and soft recovery characteristics work synergistically with the main IGBT. This effectively minimizes voltage spikes and electromagnetic interference (EMI) during switching, significantly enhancing the overall efficiency and robustness of resonant and soft-switching topologies.
Broad Operating Frequency Adaptability: Optimized specifically for Quasi-Resonant (QR) single-ended converter topologies operating within a wide frequency range of 16kHz to 60kHz, it offers designers flexible power solution choices.
IH2 IGBT for the Home Appliance Market
The design philosophy of the STGWA30IH160DF2 centers squarely on the core challenges and demands of appliance applications. Its advantages align precisely with market needs.
Conquering Thermal Challenges, Ensuring Reliability and Longevity
Appliances like induction cookers and high-power microwaves feature compact internal spaces with demanding thermal conditions. The combination of a 175°C high junction temperature and low thermal resistance allows the STGWA30IH160DF2 to maintain efficient heat dissipation even in confined, high-temperature environments. This drastically extends product lifespan, reduces failure rates caused by overheating, and meets the consumer's fundamental demand for appliance durability.
Simplifying Design, Lowering System Cost (BOM)
The high 1600V withstand voltage provides robust immunity against grid surges and switching overvoltages, effectively reducing the need for additional snubber circuits and overvoltage protection components. This design simplification directly translates into a significant reduction in Bill of Materials (BOM) cost. This advantage is highly attractive in the fiercely competitive and price-sensitive home appliance market.
High Efficiency and Energy Savings, Achieving Top Energy Ratings
Benefits from the low Vce(sat) conduction losses enabled by TGFS technology, excellent control of switching losses (Eoff), and the synergistic effect of the optimized anti-parallel diode lead to markedly improved overall operating efficiency. Not only lowers electricity costs for end-users, but it also empowers appliance manufacturers to readily comply with increasingly stringent global energy efficiency regulations.
Enabling High Power, Facilitating Power Scaling
This IGBT exhibits a positive temperature coefficient. Combined with ST's strict parameter consistency control, it enables reliable multi-device parallel operation. Designers can thus effortlessly build high-power-density solutions (e.g., for commercial induction cooktops, ultra-high-power microwaves), achieving current sharing in high-power outputs and ensuring system stability and reliability to meet the demands of professional and premium appliance markets.
The Efficient Partner for Resonant Topologies
Its optimized switching characteristics and soft-recovery diode make it exceptionally well-suited for Quasi-Resonant converters operating between 16kHz and 60kHz. This topology is widely favored in appliances due to its high efficiency and low EMI. The STGWA30IH160DF2 further unlocks the energy-saving potential inherent in resonant topologies.
Conclusion
The introduction of the STMicroelectronics STGWA30IH160DF2 IGBT marks the entry into a new phase for high-power home appliance applications, characterized by stronger performance, higher efficiency, optimized costs, and simplified design. Integrating exceptional 1600V withstand voltage, industry-leading thermal performance, low-loss characteristics enabled by advanced TGFS technology, and outstanding parallel capability, it perfectly addresses the multiple challenges appliances face regarding power density, thermal management, cost pressure, and efficiency upgrades.
This device is more than just a high-performance power switch. It is a strategic choice for appliance manufacturers seeking to enhance product competitiveness and meet the global trend towards greener, more energy-efficient solutions.
