Microcontrollers are the core cornerstone of the modern electronic world and the core driving force for the development of technologies such as embedded systems and smart hardware. It is equivalent to a miniature brain, giving devices the ability to perceive, process, make decisions, and control. Its applications have penetrated almost all fields, such as consumer electronics, automobiles, industry, medical care, smart furniture, and the Internet of Things.
What is a Microcontroller?
A microcontroller is a highly integrated microcomputer system designed to manage and control specific tasks. As the core of an embedded controller, a microcontroller encapsulates the processor (CPU), memory (RAM, ROM/FLASH), and various input/output (I/O) peripherals all on a small integrated circuit. This compact design makes it the indispensable brain in countless electronic devices.

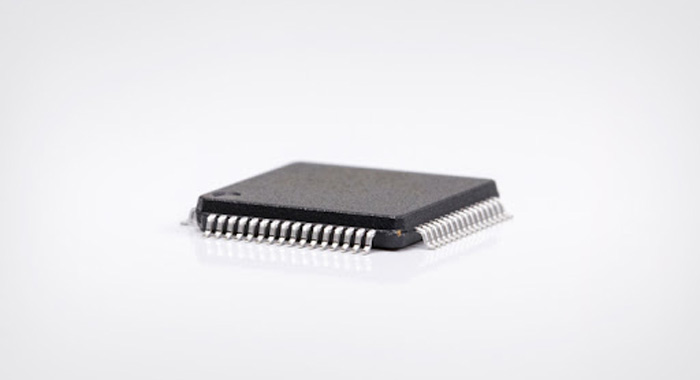

Source from Internet
You can find them in car engine control systems, industrial robots, office equipment, medical instruments, wireless communication modules, vending machines, and various smart home appliances. In essence, a microcontroller is a simplified computer designed to perform specific control functions, usually without the support of a complex operating system, and interacts directly with electronic components such as sensors and actuators.
How Do Microcontrollers Work?
Microcontrollers are embedded in target devices and focus on performing a single or a group of closely related functions. Their core processors continuously read data inputs from I/O peripherals. These data are temporarily stored in internal data memory. The CPU then accesses the data and parses and processes it according to the instruction set solidified in the program memory. The processing results are finally output through I/O peripherals to drive the device to perform corresponding actions.
Complex devices often require multiple microcontrollers to work together. For example, modern cars have dozens or even hundreds of MCUs deployed inside to manage anti-lock braking systems (ABS), traction control, fuel injection, suspension control, infotainment systems, etc. These microcontrollers communicate with each other through networks (such as CAN buses), exchange information, or coordinate with central gateway computers to ensure the safe and efficient operation of the vehicle.
Core Components of Microcontrollers
As a highly integrated IC, the core elements of a microcontroller include:
1. Central Processing Unit (CPU): The "brain" of the system, responsible for executing instructions, performing arithmetic and logical operations, managing data flow, and controlling other components.
2. Memory: Program memory, usually FLASH, non-volatile, used for long-term storage of firmware program code. Data memory, RAM, volatile, is used to temporarily store data and intermediate results when the CPU is running.
3. Input/output (I/O) peripherals: The bridge for the microcontroller to communicate with external electronic components.
General Purpose I/O (GPIO): Basic digital input/output pins
Communication interface: such as UART, SPI, I2C, USB, CAN, Ethernet, etc., used to communicate with other chips or devices
Analog peripherals: including ADC and DAC. ADC converts external analog signals (such as temperature sensor voltage) into digital signals for CPU processing. DAC converts the digital output of the CPU into analog signals (such as controlling motor speed).
Timer/Counter: used for accurate timing, generating PWM waveforms (controlling motors, LED brightness), measuring pulse width, etc.
Other dedicated peripherals: such as watchdog timer (to prevent program runaway), real-time clock (RTC), LCD controller, specific protocol engine, etc.
4. System bus: internal high-speed data channel that links CPU, memory, and various peripherals to ensure efficient data flow.
Key Features and Architecture Selection
The data width of the microcontroller processor determines its processing power and complexity, ranging from simple home appliance control (8-bit) to high-performance automotive engine management or IoT gateways (32-bit, 64-bit). Memory types are also diverse, including volatile SRAM and non-volatile Flash, EEPROM, etc.
There are two main core architectures:
Von Neumann: Instructions and data share the same bus. The structure is relatively simple, and the cost is low, but it may limit performance
Harvard: The instruction bus and data bus are separated, allowing simultaneous instruction and data fetching, significantly improving execution efficiency, and it is a common choice for high-performance microcontrollers.
There are also two main schools of thought in instruction set architecture:
Complex instruction set computer (CISC): Rich instruction functions, a single instruction can complete more complex operations, high code density, but may require more clock cycles.
Reduced instruction set computer (RISC): The instruction set is streamlined, each instruction is executed quickly (usually single cycle), more instructions are needed to complete complex tasks, but the overall performance potential is high, and power consumption control is excellent. The ARM Cortex-M series is an outstanding representative of RISC.
In the early days, the development language was mainly assembly, but now C/C++ is the mainstream of embedded development. Python (such as MicroPython) and JavaScript (such as Espruino) are also increasingly used in specific platforms (especially IoT prototype development).
Main Types of Microcontrollers
Microcontrollers are usually classified by data width and architecture:
8-bit microcontrollers: The classic 8051 series, Microchip's PIC series, and AVR series (such as used in Arduino Uno). Simple structure, extremely low cost, ultra-low power consumption, widely used in basic control (home appliances, toys, simple sensor nodes).
16-bit microcontrollers: TI's MSP430. Performance, memory, and power consumption are between 8-bit and 32-bit, often used in applications that require certain processing power but are sensitive to power consumption (portable medical equipment, instruments).
32-bit microcontrollers: Occupy the mainstream high-performance market, such as STMicroelectronics STM32 series based on ARM Cortex-M core, NXP Kinetis series, Microchip SAM series, etc. Provide powerful processing power, rich peripherals, and larger memory for complex applications (automotive electronics, industrial control, smart home, IoT gateway, advanced consumer electronics).
Representative models and manufacturers:
8051 (MCS-51): The classic 8-bit CISC architecture (Harvard Improved) pioneered by Intel, with a large ecosystem, and many manufacturers (such as NXP and Silicon Labs) are still producing enhanced models.
PIC (Microchip): Microchip's iconic product line, covering from 8-bit to 32-bit, is widely used.
AVR (Microchip): A high-performance 8-bit RISC MCU (improved Harvard architecture) originally developed by Atmel, known for its ease of use (Arduino core), now owned by Microchip.
ARM Cortex-M: ARM has licensed its Cortex-M core to many manufacturers (such as STMicroelectronics, NXP, and TI). STMicroelectronics' STM32 series has become a leader in the 32-bit market with its high performance, rich product line, and strong ecosystem. These MCUs emphasize energy efficiency and are ideal for mobile devices, IoT nodes, and industrial automation.
Application Fields of Microcontrollers
Microcontrollers are the main force of embedded controllers, and they are used in a wide range of applications.
Consumer electronics: Smart home appliances (oven, refrigerator, washing machine), TV remote control, game controller, toys, wearable devices.
Automotive electronics: Engine management, body control (doors and windows, lights), safety system (ABS, airbags), infotainment system.
Industrial Automation: PLC, motor control, robot, sensor data acquisition, process control.
Medical equipment: Blood glucose meter, heart monitor, infusion pump, portable diagnostic equipment, prosthetic control.
Office equipment: printer, copier, scanner, fax machine, attendance machine.
Communication and network: Modem, router, switch, wireless module (WiFi, Bluetooth, LoRa).
Internet of Things (IoT): Microcontrollers are the core of the IoT perception layer and edge computing, connecting various sensors (temperature and humidity, light, motion), processing data, and uploading through the network (such as NB-IoT, LTE-M). Both STMicroelectronics and Microchip offer a wide range of IoT node MCU solutions.
Smart Home and Building Automation: Lighting Control, Thermostat, Security System (Door Locks, Cameras), Energy Management.
Aerospace and Defense: Navigation Systems, Flight Control, Instrumentation.
Microcontroller vs. Microprocessor: Key Differences
Both microcontrollers and microprocessors are central processing units on devices. They can execute code instructions and perform arithmetic/logical operations. They are the core components of computing and control. However, microprocessors are more focused on high-speed computing and are the "brains" of complex systems. However, they require independent memory, storage, and input/output chips to work.

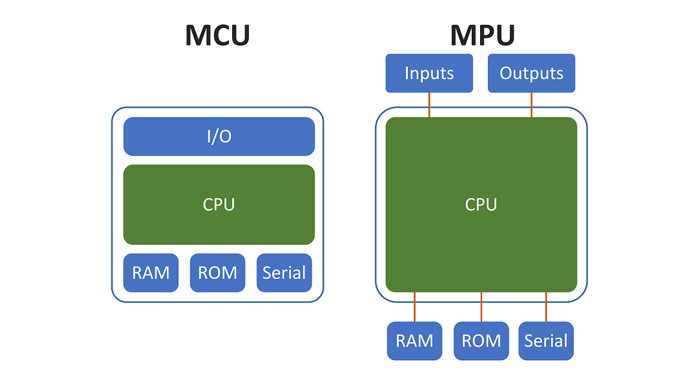

Source from Internet: MCU vs. MPU
Microcontrollers are more like microcomputer systems. They contain a processor core, integrating memory, storage, timers, and various peripheral interfaces. They pursue high integration, low power consumption, and cost-effectiveness.
Integration: Microcontrollers are "systems on a chip" (SoC), where the CPU, memory, and I/O are all integrated on a single integrated circuit (integrated circuits), forming a self-contained unit. Microprocessors only contain the CPU core and require externally connected RAM, ROM, serial port chips, clock chips, and other electronic components to work.
Functional positioning: Microcontrollers are designed to control specific tasks, directly connect to and manage sensors and actuators ("embedded" cores). Microprocessors are designed for general computing, pursue maximum data processing capabilities, and run complex operating systems (such as Windows, Linux).
Power consumption and cost: Microcontrollers usually consume less power, cost less, and are simpler to develop (for specific applications). Microprocessor systems consume more power and cost more.
Application scenarios: Microcontrollers are the heart of coffee machines, remote controls, and electric toothbrushes. Microprocessors are the heart of desktop computers, servers, and high-end laptops.
As technology advances, high-performance MCUs (such as the ARM Cortex-A series) have blurred some of the boundaries, but the core differences (integration and target applications) remain clear.
How to Choose the Right Microcontroller?
Choosing the right microcontroller for your project requires a combination of technical and commercial factors.
Technical requirements:
Processing power (CPU bit number/main frequency): Task complexity requirements?
Memory (RAM/Flash): Program size and runtime data requirements?
I/O requirements: How many GPIOs are needed? What specific peripherals are needed (ADC channels, DAC, UART/SPI/I2C/USB/CAN number? Specific communication protocols? PWM channels?)?
Power consumption: Is the device battery-powered? Does it require ultra-low power modes (sleep, standby)?
Analog performance: What are the requirements for ADC/DAC accuracy and speed?
Real-time performance: Is a hard real-time response required? How many hardware timers are required?
Working environment: Temperature range? Anti-interference requirements?
Business and ecological factors:
Cost: The cost of the chip itself and the overall system cost (are additional electronic components required?).
Development tools: Are there mature and easy-to-use compilers, debuggers, integrated development environments (IDEs), and programming tools?
Software Libraries and Support: Does the vendor provide driver libraries (HAL/LL), middleware (RTOS, file system, network protocol stack), and sample code? Is community support active?
Suppliers and Supply: Is the supply of products from major vendors such as Microchip and STMicroelectronics stable? What is the life cycle? Are there alternatives?
Learning Curve: Is the team familiar with the architecture (such as ARM Cortex-M vs. PIC) and development tools?
Certification Requirements: Does a specific industry (automotive, medical) require specially certified chips?
Leading vendors such as Microchip (providing PIC, AVR, SAM series) and STMicroelectronics (providing a powerful STM32 series) have become the first choice for many embedded development projects with their broad product portfolios, mature ecosystems, reliable technical support, and long-term supply commitments. Carefully evaluating project requirements and making full use of the selection tools and resources provided by the vendor are key steps in successfully selecting a Microcontroller.
