  • Alpha and Omega Semiconductor, Inc.
  • AOTF292L
  • Discrete Semiconductor Products

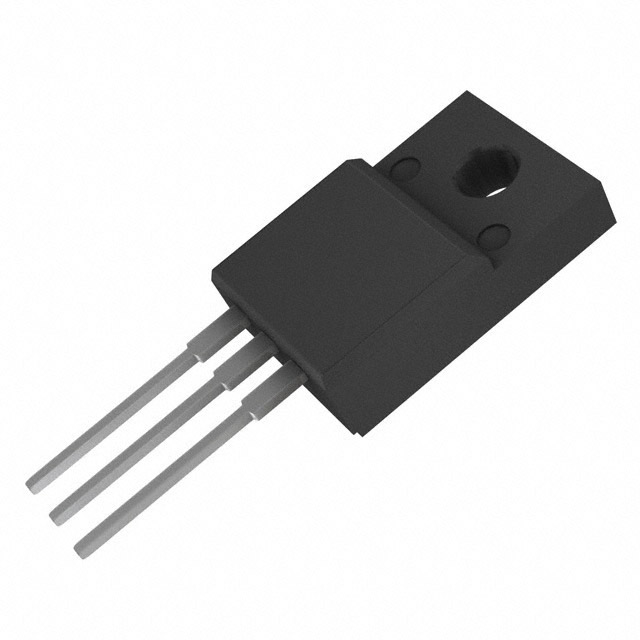

  • MOSFET N-CH 100V 70A TO220F
  •  AOTF292L Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerAlpha and Omega Semiconductor, Inc.
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity50
  • DescriptionN-Channel 100 V 70A (Tc) 47W (Tc) Through Hole TO-220F
  • Package / CaseTO-220-3 Full Pack
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 175°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C70A (Tc)
  • Rds On (Max) @ Id, Vgs4.5mOhm @ 20A, 10V
  • Power Dissipation (Max)47W (Tc)
  • Vgs(th) (Max) @ Id3.4V @ 250µA
  • Supplier Device PackageTO-220F
  • Drive Voltage (Max Rds On, Min Rds On)6V, 10V
  • Vgs (Max)±20V
  • Drain to Source Voltage (Vdss)100 V
  • Gate Charge (Qg) (Max) @ Vgs126 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds6775 pF @ 50 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new AOTF292L from Alpha and Omega Semiconductor, Inc. only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
