  • Alpha and Omega Semiconductor, Inc.

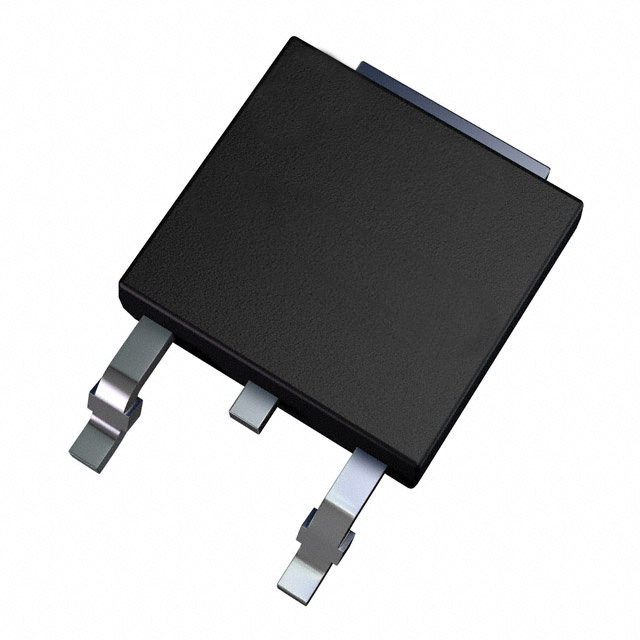

  • AOD4N60
  • Discrete Semiconductor Products
  • MOSFET N-CH 600V 4A TO252
  •  AOD4N60 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerAlpha and Omega Semiconductor, Inc.
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity2500
  • DescriptionN-Channel 600 V 4A (Tc) 104W (Tc) Surface Mount TO-252 (DPAK)
  • Package / CaseTO-252-3, DPAK (2 Leads + Tab), SC-63
  • Mounting TypeSurface Mount
  • Operating Temperature-50°C ~ 150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C4A (Tc)
  • Rds On (Max) @ Id, Vgs2.3Ohm @ 2A, 10V
  • Power Dissipation (Max)104W (Tc)
  • Vgs(th) (Max) @ Id4.5V @ 250µA
  • Supplier Device PackageTO-252 (DPAK)
  • Drive Voltage (Max Rds On, Min Rds On)10V
  • Vgs (Max)±30V
  • Drain to Source Voltage (Vdss)600 V
  • Gate Charge (Qg) (Max) @ Vgs14.5 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds640 pF @ 25 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new AOD4N60 from Alpha and Omega Semiconductor, Inc. only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
