Product Specifications
  • AttributesAttribute Value
  • ManufacturerBroadcom
  • CategoryIsolators
  • PackagesTape & Reel (TR)
  • Standard Quantity1500
  • DescriptionLogic Output Optoisolator 5MBd Open Collector, Schottky Clamped 3750Vrms 1 Channel 100V/µs CMTI 8-SO Tall

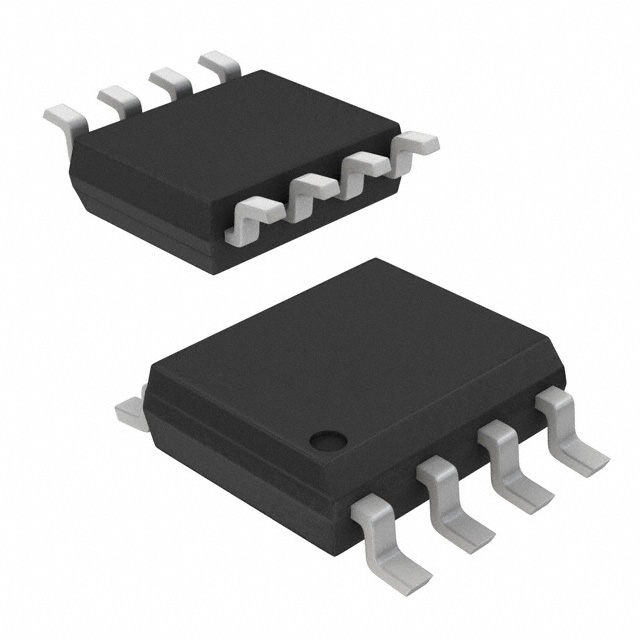

  • Package / Case8-SOIC (0.154", 3.90mm Width)
  • Output TypeOpen Collector, Schottky Clamped
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 85°C
  • Voltage - Supply4.75V ~ 5.25V
  • Voltage - Forward (Vf) (Typ)1.3V
  • Data Rate5MBd
  • Input TypeDC
  • Voltage - Isolation3750Vrms
  • Current - DC Forward (If) (Max)5mA (Typ)
  • Inputs - Side 1/Side 21/0
  • Supplier Device Package8-SO Tall
  • Rise / Fall Time (Typ)40ns, 20ns
  • Common Mode Transient Immunity (Min)100V/µs
  • Propagation Delay tpLH / tpHL (Max)160ns, 200ns
  • Number of Channels1
  • Current - Output / Channel25 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new HCPL-0300-500E from Broadcom only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,327
Please send an RFQ for instant price and inventory.
