Product Specifications
  • AttributesAttribute Value
  • ManufacturerBroadcom
  • CategoryIsolators
  • PackagesTape & Reel (TR)
  • Standard Quantity1000

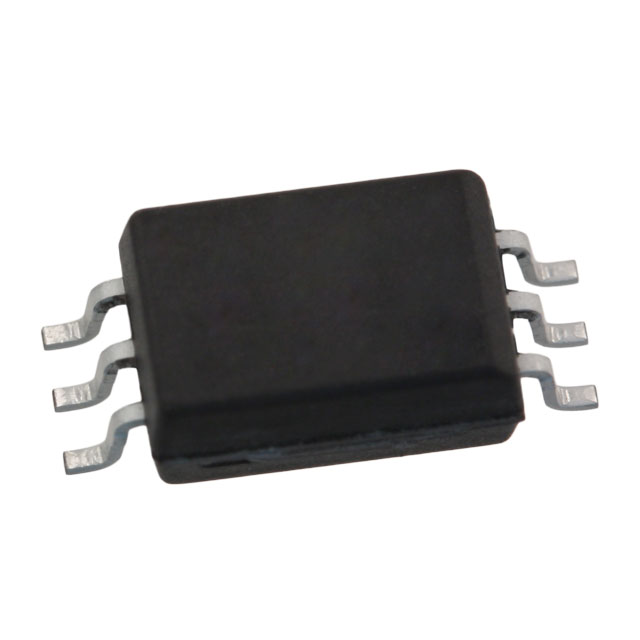

  • DescriptionLogic Output Optoisolator 15MBd Push-Pull, Totem Pole 5000Vrms 1 Channel 10kV/µs CMTI 6-SSO
  • Package / Case6-SOIC (0.268", 6.80mm Width)
  • Output TypePush-Pull, Totem Pole
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 105°C
  • Voltage - Supply3V ~ 3.6V, 4.5V ~ 5.5V
  • Voltage - Forward (Vf) (Typ)1.5V
  • Data Rate15MBd
  • Input TypeDC
  • Voltage - Isolation5000Vrms
  • Current - DC Forward (If) (Max)10mA
  • Inputs - Side 1/Side 21/0
  • Supplier Device Package6-SSO
  • Rise / Fall Time (Typ)3.5ns, 3.5ns
  • Common Mode Transient Immunity (Min)10kV/µs
  • Propagation Delay tpLH / tpHL (Max)55ns, 55ns
  • Number of Channels1
  • Current - Output / Channel10 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new ACPL-W70L-500E from Broadcom only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 845
Please send an RFQ for instant price and inventory.
