Product Specifications
  • AttributesAttribute Value
  • ManufacturerBroadcom
  • CategoryIsolators
  • PackagesTape & Reel (TR)
  • Standard Quantity500

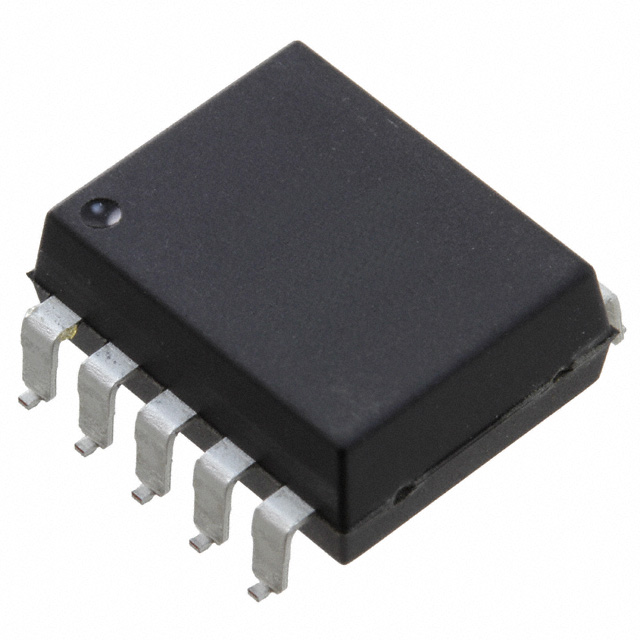

  • DescriptionLogic Output Optoisolator Open Collector, Schottky Clamped 7500Vrms 1 Channel 30kV/µs CMTI 10-DIP Gull Wing
  • Package / Case10-SMD, Gull Wing
  • Output TypeOpen Collector, Schottky Clamped
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 105°C
  • Voltage - Supply4.5V ~ 30V
  • Voltage - Forward (Vf) (Typ)1.5V
  • Input TypeDC
  • Voltage - Isolation7500Vrms
  • Current - DC Forward (If) (Max)25mA
  • Inputs - Side 1/Side 21/0
  • Supplier Device Package10-DIP Gull Wing
  • Common Mode Transient Immunity (Min)30kV/µs
  • Propagation Delay tpLH / tpHL (Max)550ns, 400ns
  • Number of Channels1
  • Current - Output / Channel15 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new ACNV4506-500E from Broadcom only.
