Product Specifications
  • AttributesAttribute Value
  • ManufacturerCOILCRAFT
  • CategoryInductors, Coils, Chokes
  • PackagesStrip
  • Standard Quantity1

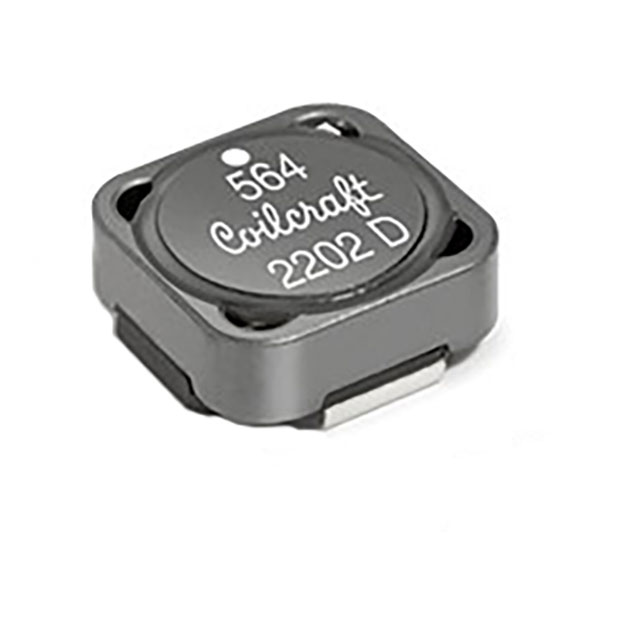

  • Description5.6 µH Shielded Drum Core Inductor 3.8 A 17.5mOhm Max Nonstandard
  • Tolerance±20%
  • Package / CaseNonstandard
  • Size / Dimension0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Mounting TypeSurface Mount
  • ShieldingShielded
  • TypeDrum Core
  • Operating Temperature-40°C ~ 125°C
  • DC Resistance (DCR)17.5mOhm Max
  • Frequency - Self Resonant45MHz
  • RatingsAEC-Q200
  • Current - Saturation (Isat)8.3A
  • Material - CoreFerrite
  • Inductance Frequency - Test100 kHz
  • Height - Seated (Max)0.191" (4.85mm)
  • Inductance5.6 µH
  • Current Rating (Amps)3.8 A

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new MSS1246H-562MED from COILCRAFT only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,943
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
