  • Fair-Rite Products Corp.
  • 9580130302
  • Magnetics - Transformer, Inductor Components

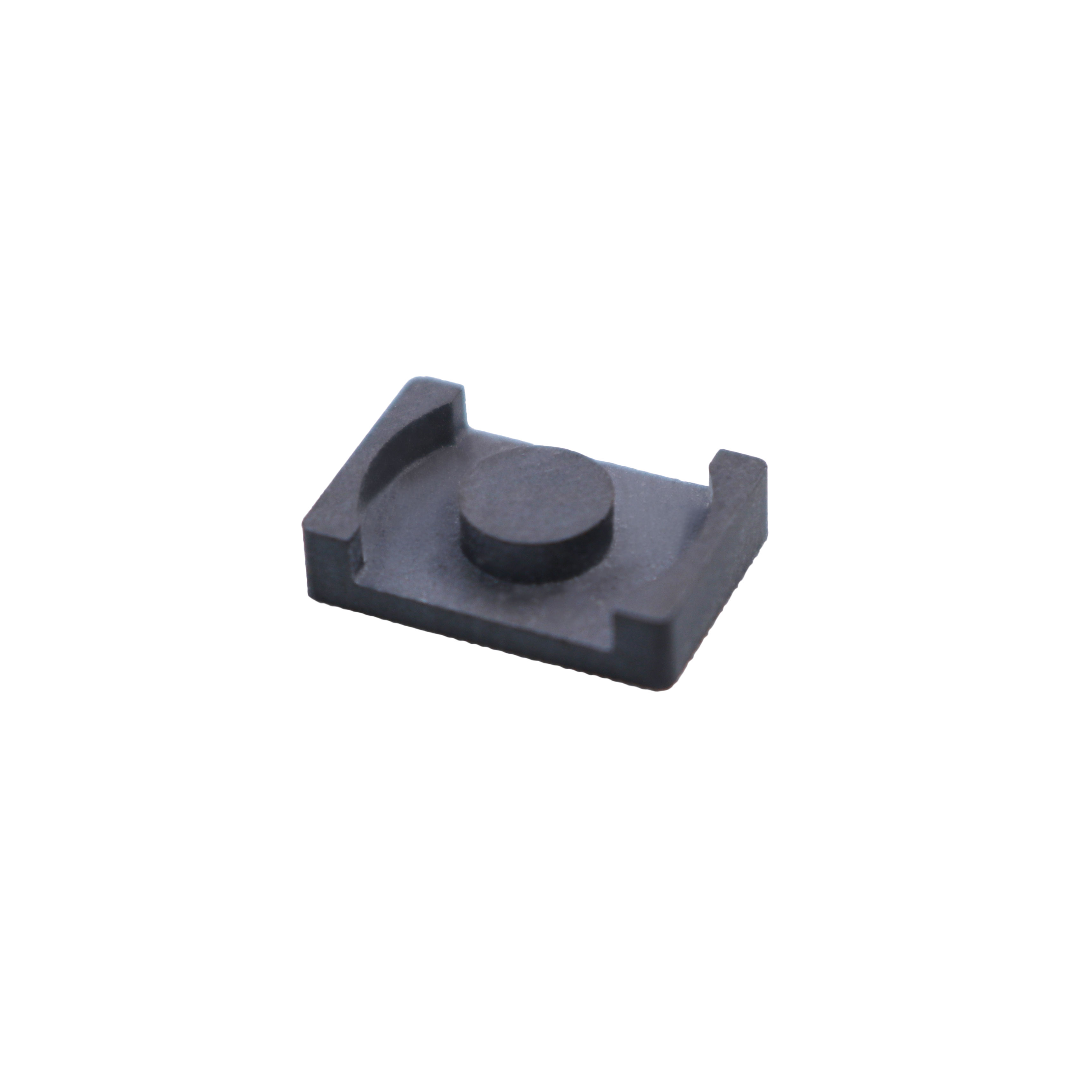

  • FERRITE CORE EQ 650NH 80
  •  9580130302 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerFair-Rite Products Corp.
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesTape & Reel (TR)
  • Standard Quantity1560
  • DescriptionUncoated 80 Ferrite Core EQ Type 0.504" (12.80mm) Length 0.343" (8.70mm) Width Diameter 0.112" (2.85mm) Height
  • Tolerance±25%
  • Material80
  • Length0.504" (12.80mm)
  • Width0.343" (8.70mm)
  • Height0.112" (2.85mm)
  • Core TypeEQ
  • Supplier Device PackageEQ 13 x 2.9 x 8.7
  • Inductance Factor (Al)650 nH
  • FinishUncoated
  • GapUngapped
  • Core Factor (ΣI/A) mm⁻¹0.856
  • Effective Length (le) mm17.4
  • Effective Area (Ae) mm²20
  • Minimum Core Cross Section (Amin) mm²19.2
  • Effective Magnetic Volume (Ve) mm³348

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 9580130302 from Fair-Rite Products Corp. only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
