  • Fair-Rite Products Corp.
  • 9077002002
  • Magnetics - Transformer, Inductor Components

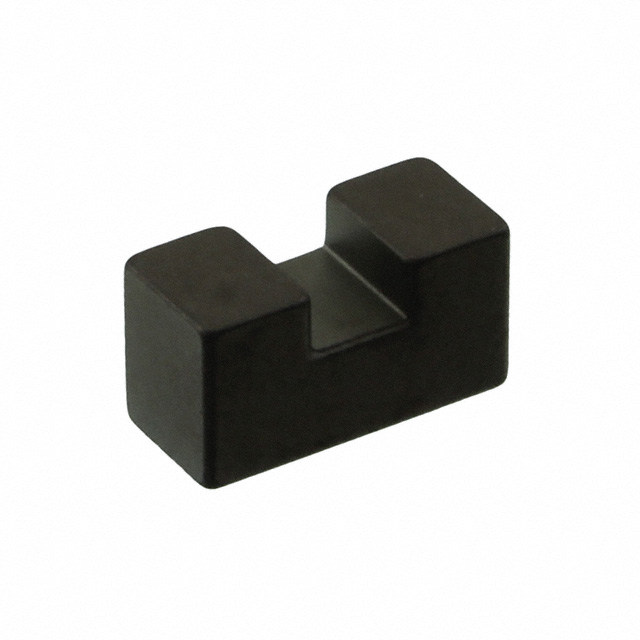

  • FERRITE CORE U 77
  •  9077002002 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerFair-Rite Products Corp.
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBulk
  • Standard Quantity200
  • DescriptionUncoated 77 Ferrite Core U Type 0.340" (8.64mm) Length 0.180" (4.57mm) Width Diameter 0.160" (4.06mm) Height
  • Material77
  • Length0.340" (8.64mm)
  • Width0.180" (4.57mm)
  • Height0.160" (4.06mm)
  • Core TypeU
  • Initial Permeability (µi)2000
  • FinishUncoated
  • GapUngapped
  • Core Factor (ΣI/A) mm⁻¹168
  • Effective Length (le) mm20.8
  • Effective Area (Ae) mm²12.4
  • Effective Magnetic Volume (Ve) mm³257

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 9077002002 from Fair-Rite Products Corp. only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 12,009
Please send an RFQ for instant price and inventory.
