  • Fair-Rite Products Corp.
  • 6698505021
  • Magnetics - Transformer, Inductor Components

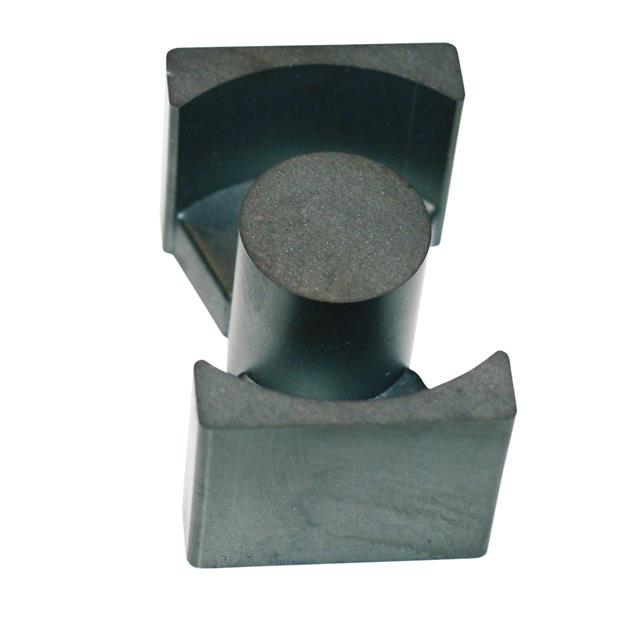

  • FERRITE CORE PQ SET
  •  6698505021 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerFair-Rite Products Corp.
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBulk
  • Standard Quantity64
  • DescriptionUncoated Ferrite Core PQ Type 1.969" (50.00mm) Length 1.260" (32.00mm) Width Diameter Height
  • Tolerance±25%
  • Length1.969" (50.00mm)
  • Width1.260" (32.00mm)
  • Core TypePQ
  • Initial Permeability (µi)2400
  • FinishUncoated
  • GapUngapped
  • Core Factor (ΣI/A) mm⁻¹35.9
  • Effective Length (le) mm114.7
  • Effective Area (Ae) mm²319.0
  • Minimum Core Cross Section (Amin) mm²314.2
  • Effective Magnetic Volume (Ve) mm³36630.0

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 6698505021 from Fair-Rite Products Corp. only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 46
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
