  • Fair-Rite Products Corp.
  • 9478201002
  • Magnetics - Transformer, Inductor Components

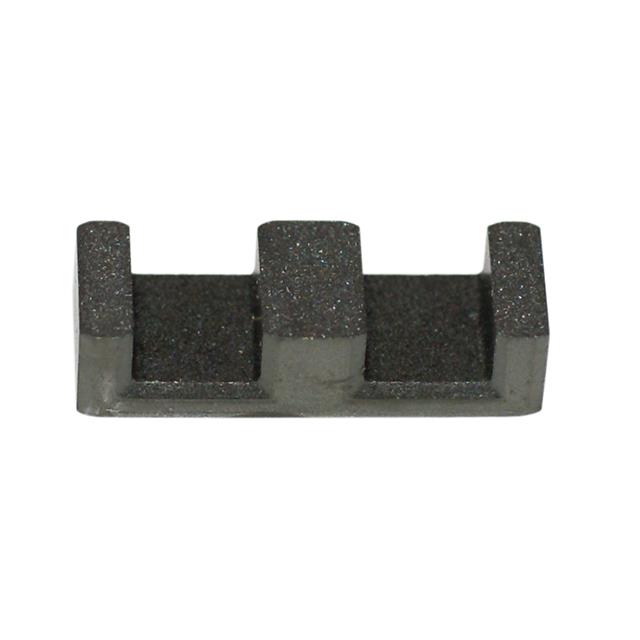

  • FERRITE CORE E 78 SET
  •  9478201002 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerFair-Rite Products Corp.
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBulk
  • Standard Quantity3384
  • DescriptionUncoated 78 Ferrite Core E Type 0.551" (14.00mm) Length 0.197" (5.00mm) Width Diameter Height
  • Tolerance±25%
  • Material78
  • Length0.551" (14.00mm)
  • Width0.197" (5.00mm)
  • Core TypeE
  • Initial Permeability (µi)2300
  • FinishUncoated
  • GapUngapped
  • Core Factor (ΣI/A) mm⁻¹134
  • Effective Length (le) mm20.1
  • Effective Area (Ae) mm²15.3
  • Minimum Core Cross Section (Amin) mm²15
  • Effective Magnetic Volume (Ve) mm³315

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 9478201002 from Fair-Rite Products Corp. only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,959
Please send an RFQ for instant price and inventory.
