  • Fairchild Semiconductor

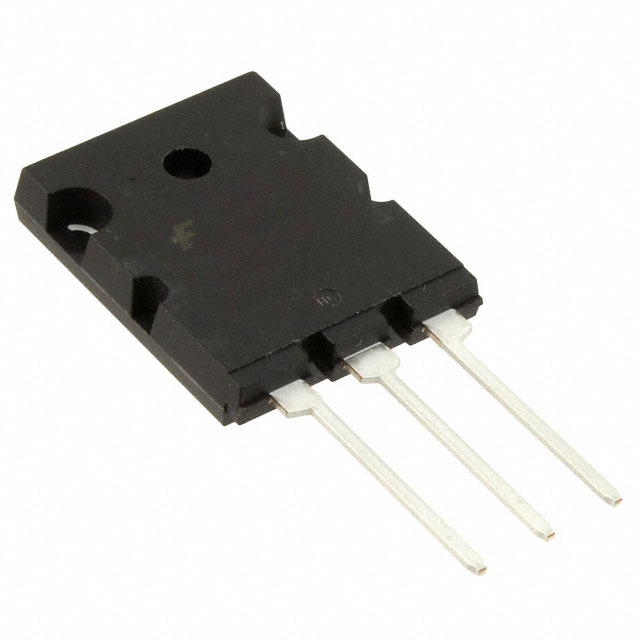

  • SGL40N150DTU
  • Discrete Semiconductor Products
  • N-CHANNEL IGBT
  •  SGL40N150DTU Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerFairchild Semiconductor
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity24
  • DescriptionIGBT 1500 V 40 A 200 W Through Hole HPM F2
  • Package / CaseTO-264-3, TO-264AA
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Input TypeStandard
  • Reverse Recovery Time (trr)300 ns
  • Vce(on) (Max) @ Vge, Ic4.7V @ 15V, 40A
  • Supplier Device PackageHPM F2
  • Gate Charge140 nC
  • Current - Collector (Ic) (Max)40 A
  • Voltage - Collector Emitter Breakdown (Max)1500 V
  • Current - Collector Pulsed (Icm)120 A
  • Power - Max200 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new SGL40N150DTU from Fairchild Semiconductor only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,042
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
