  • Fairchild Semiconductor

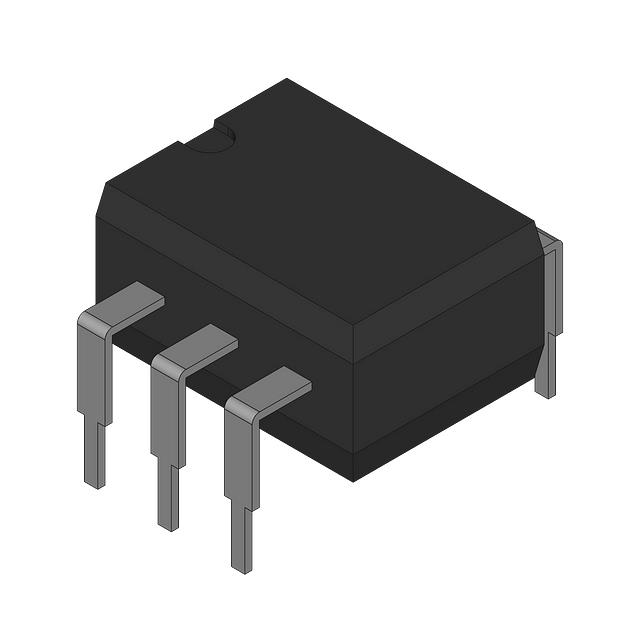

  • H11AA3M
  • Isolators
  • AC IN-DARLINGTON OUT OPTOCOUPLER
  •  H11AA3M Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerFairchild Semiconductor
  • CategoryIsolators
  • PackagesBulk
  • Standard Quantity2049
  • DescriptionOptoisolator Transistor with Base Output 5000Vrms 1 Channel 6-DIP
  • Package / Case6-DIP (0.400", 10.16mm)
  • Output TypeTransistor with Base
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 100°C
  • Voltage - Forward (Vf) (Typ)1.2V
  • Input TypeAC, DC
  • Voltage - Isolation5000Vrms
  • Current Transfer Ratio (Min)50% @ 10mA
  • Vce Saturation (Max)400mV
  • Supplier Device Package6-DIP
  • Voltage - Output (Max)80V
  • Turn On / Turn Off Time (Typ)10µs, 10µs (Max)
  • Rise / Fall Time (Typ)10µs, 10µs (Max)
  • Number of Channels1
  • Current - DC Forward (If) (Max)60 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new H11AA3M from Fairchild Semiconductor only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 11,414
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
