  • Fairchild Semiconductor

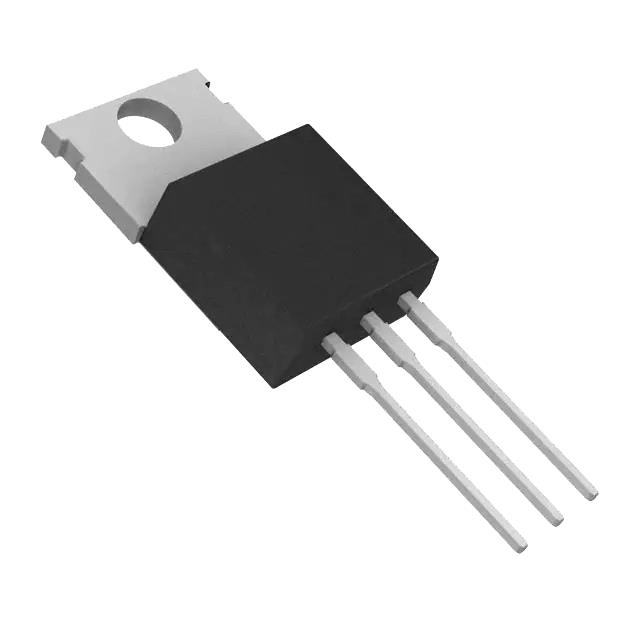

  • FCPF9N60NT
  • Discrete Semiconductor Products
  • POWER FIELD-EFFECT TRANSISTOR, 9
  •  FCPF9N60NT Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerFairchild Semiconductor
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity217
  • DescriptionN-Channel 600 V 9A (Tc) 29.8W (Tc) Through Hole TO-220F-3
  • Package / CaseTO-220-3 Full Pack
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C9A (Tc)
  • Rds On (Max) @ Id, Vgs385mOhm @ 4.5A, 10V
  • Power Dissipation (Max)29.8W (Tc)
  • Vgs(th) (Max) @ Id4V @ 250µA
  • Supplier Device PackageTO-220F-3
  • Drive Voltage (Max Rds On, Min Rds On)10V
  • Vgs (Max)±30V
  • Drain to Source Voltage (Vdss)600 V
  • Gate Charge (Qg) (Max) @ Vgs29 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds1240 pF @ 100 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new FCPF9N60NT from Fairchild Semiconductor only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,700
Please send an RFQ for instant price and inventory.
