  • Fairchild Semiconductor
  • FDMS7572S
  • Discrete Semiconductor Products

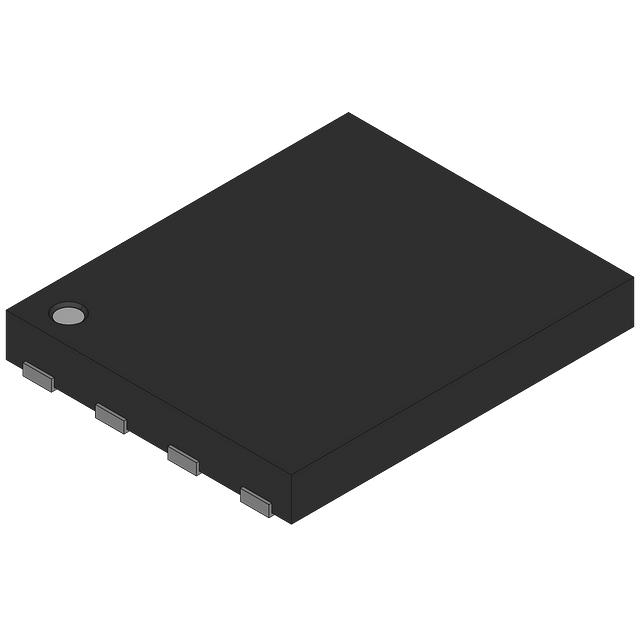

  • MOSFET N-CH 25V 23A/49A 8PQFN
  •  FDMS7572S Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerFairchild Semiconductor
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity329
  • DescriptionN-Channel 25 V 23A (Ta), 49A (Tc) 2.5W (Ta), 46W (Tc) Surface Mount 8-PQFN (5x6)
  • Package / Case8-PowerTDFN
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C23A (Ta), 49A (Tc)
  • Rds On (Max) @ Id, Vgs2.9mOhm @ 23A, 10V
  • Power Dissipation (Max)2.5W (Ta), 46W (Tc)
  • Vgs(th) (Max) @ Id3V @ 1mA
  • Supplier Device Package8-PQFN (5x6)
  • Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
  • Vgs (Max)±20V
  • Drain to Source Voltage (Vdss)25 V
  • Gate Charge (Qg) (Max) @ Vgs45 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds2780 pF @ 13 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new FDMS7572S from Fairchild Semiconductor only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 75,825
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
