Product Specifications
  • AttributesAttribute Value
  • ManufacturerFairchild Semiconductor
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity2567
  • DescriptionP-Channel 12 V 3A (Ta) 1W (Ta) Surface Mount SOT-563/SCH6

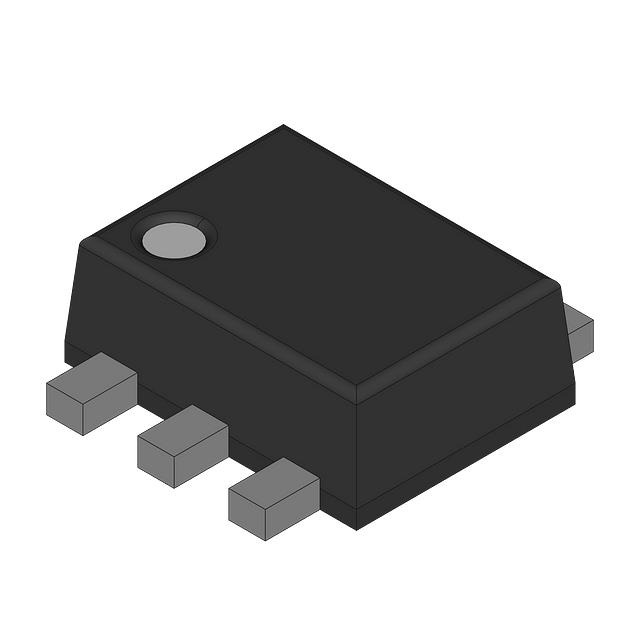

  • Package / CaseSOT-563, SOT-666
  • Mounting TypeSurface Mount
  • Operating Temperature150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeP-Channel
  • Current - Continuous Drain (Id) @ 25°C3A (Ta)
  • Rds On (Max) @ Id, Vgs84mOhm @ 1.5A, 4.5V
  • Power Dissipation (Max)1W (Ta)
  • Vgs(th) (Max) @ Id1.3V @ 1mA
  • Supplier Device PackageSOT-563/SCH6
  • Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
  • Vgs (Max)±10V
  • Drain to Source Voltage (Vdss)12 V
  • Gate Charge (Qg) (Max) @ Vgs5.6 nC @ 4.5 V
  • Input Capacitance (Ciss) (Max) @ Vds405 pF @ 6 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new SCH1331-TL-W from Fairchild Semiconductor only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 10,000
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
