  • FERROXCUBE
  • EFD10/5/3-3F46-S
  • Magnetics - Transformer, Inductor Components

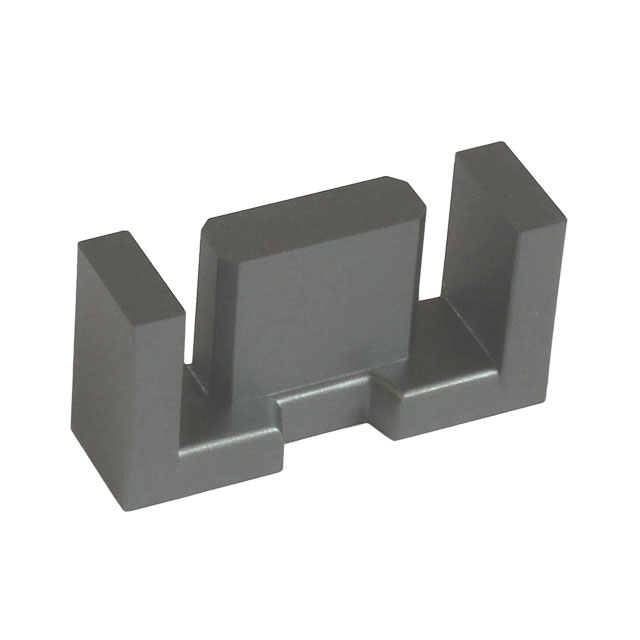

  • FERRITE CORE EFD 3F46 2PC SET
  •  EFD10/5/3-3F46-S Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerFERROXCUBE
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBulk
  • Standard Quantity1000
  • DescriptionUncoated 3F46 Ferrite Core EFD Type 0.413" (10.50mm) Length 0.106" (2.70mm) Width Diameter 0.205" (5.20mm) Height
  • Tolerance±25%
  • Material3F46
  • Length0.413" (10.50mm)
  • Width0.106" (2.70mm)
  • Height0.205" (5.20mm)
  • Core TypeEFD
  • Supplier Device PackageEFD 10 x 5 x 3
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)655
  • Core Factor (ΣI/A) mm⁻¹3.29
  • Effective Length (le) mm23.7
  • Effective Area (Ae) mm²7.2
  • Minimum Core Cross Section (Amin) mm²6.5
  • Effective Magnetic Volume (Ve) mm³171

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new EFD10/5/3-3F46-S from FERROXCUBE only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 65
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
