  • FERROXCUBE
  • EFD15/8/5-3F36-S
  • Magnetics - Transformer, Inductor Components

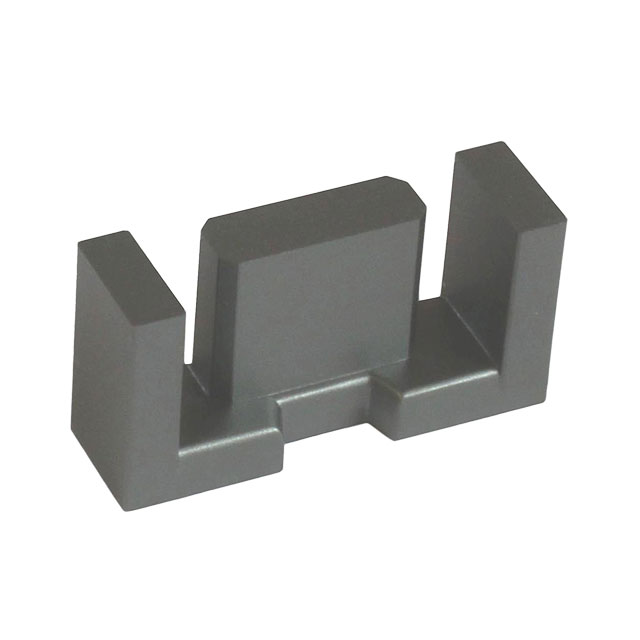

  • FERRITE CORE EFD 3F36 2PC SET
  •  EFD15/8/5-3F36-S Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerFERROXCUBE
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBulk
  • Standard Quantity500
  • DescriptionUncoated 3F36 Ferrite Core EFD Type 0.591" (15.00mm) Length 0.183" (4.65mm) Width Diameter 0.295" (7.50mm) Height
  • Tolerance±25%
  • Material3F36
  • Length0.591" (15.00mm)
  • Width0.183" (4.65mm)
  • Height0.295" (7.50mm)
  • Core TypeEFD
  • Supplier Device PackageEFD 15 x 8 x 5
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)1170
  • Core Factor (ΣI/A) mm⁻¹2.27
  • Effective Length (le) mm34
  • Effective Area (Ae) mm²15
  • Minimum Core Cross Section (Amin) mm²12.2
  • Effective Magnetic Volume (Ve) mm³510

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new EFD15/8/5-3F36-S from FERROXCUBE only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 730
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
