  • FERROXCUBE
  • PQ32/30-3C96
  • Magnetics - Transformer, Inductor Components

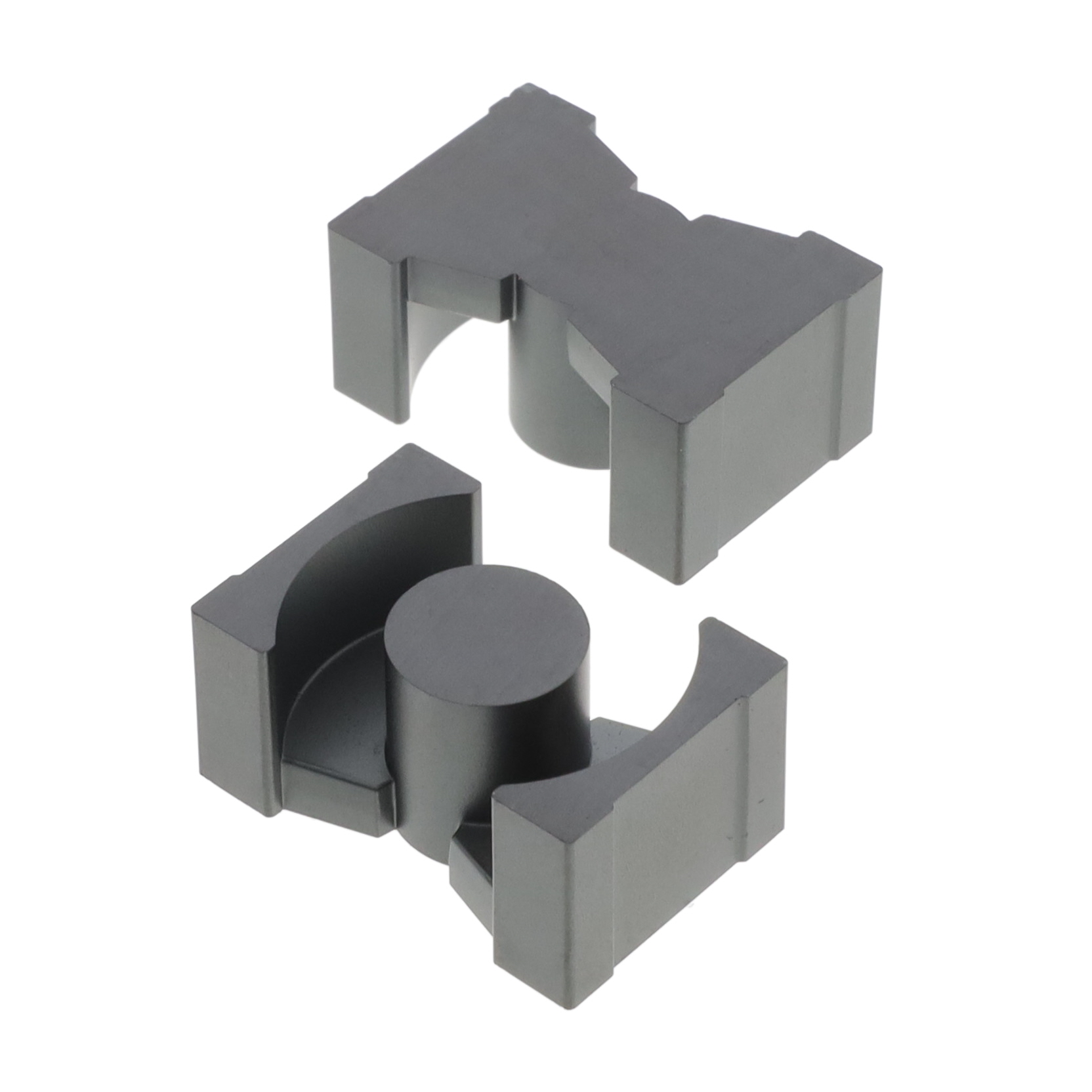

  • FERRITE CORE PQ 3C96 2PC SET
  •  PQ32/30-3C96 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerFERROXCUBE
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBulk
  • Standard Quantity140
  • DescriptionUncoated 3C96 Ferrite Core PQ Type 1.299" (33.00mm) Length 0.866" (22.00mm) Width Diameter 1.193" (30.30mm) Height
  • Tolerance±25%
  • Material3C96
  • Length1.299" (33.00mm)
  • Width0.866" (22.00mm)
  • Height1.193" (30.30mm)
  • Core TypePQ
  • Supplier Device PackagePQ 32 x 30
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)1790.0
  • Core Factor (ΣI/A) mm⁻¹0.447
  • Effective Length (le) mm74.7
  • Effective Area (Ae) mm²167.0
  • Minimum Core Cross Section (Amin) mm²142.0
  • Effective Magnetic Volume (Ve) mm³12500.0

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PQ32/30-3C96 from FERROXCUBE only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 946
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
