  • FERROXCUBE
  • TX22/14/13-3C94
  • Magnetics - Transformer, Inductor Components

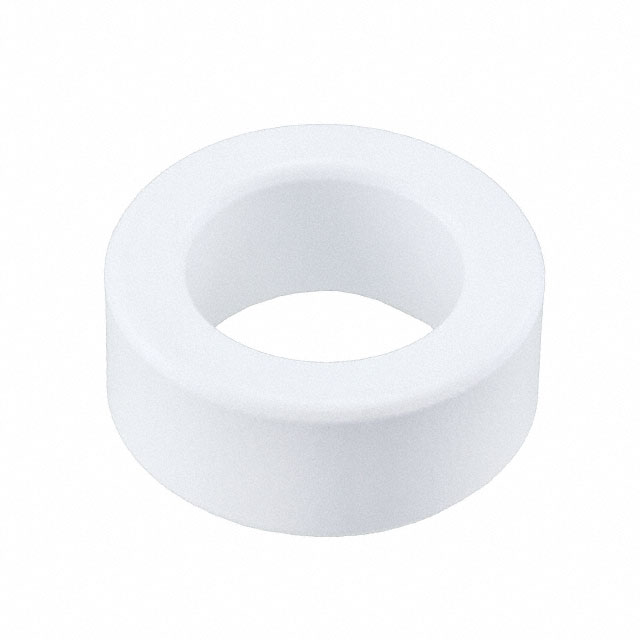

  • FERRITE CORE TOROID 3C94
  •  TX22/14/13-3C94 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerFERROXCUBE
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBulk
  • Standard Quantity252
  • DescriptionEpoxy 3C94 Ferrite Core Toroid Type Length Width 0.880" (22.35mm) Diameter 0.510" (12.95mm) Height
  • Tolerance±20%
  • Material3C94
  • Diameter0.880" (22.35mm)
  • Height0.510" (12.95mm)
  • Core TypeToroid
  • Supplier Device PackageTX 22 x 14 x 13
  • Initial Permeability (µi)2300
  • FinishEpoxy
  • GapUngapped
  • Core Factor (ΣI/A) mm⁻¹1.07
  • Effective Length (le) mm54.2
  • Effective Area (Ae) mm²50.9
  • Effective Magnetic Volume (Ve) mm³2750

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new TX22/14/13-3C94 from FERROXCUBE only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 505
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
