  • Hammond Manufacturing
  • 109G
  • Transformers

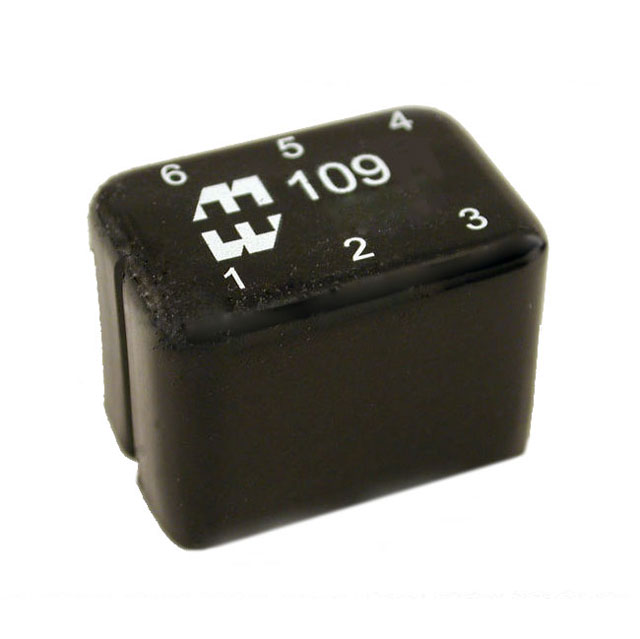

  • AUDIO XFMR 600CT / 250CT TH
  •  109G Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerHammond Manufacturing
  • CategoryTransformers
  • PackagesBulk
  • Standard Quantity1
  • Description600CT Impedance Primary Ohms 250CT Impedance Secondary Ohms 1.55:1 Audio Transformer 300Hz ~ 50kHz Through Hole
  • Size / Dimension1.315" L x 0.930" W (33.40mm x 23.62mm)
  • Mounting TypeThrough Hole
  • Termination StylePC Pin
  • Transformer TypeMiniature Epoxy Potted
  • Turns Ratio - Primary:Secondary1.55:1
  • Frequency Range300Hz ~ 50kHz
  • Voltage - Isolation100VRMS
  • Height - Seated (Max)0.920" (23.37mm)
  • Impedance - Primary (Ohms)600CT
  • Impedance - Secondary (Ohms)250CT
  • DC Resistance (DCR) - Primary40Ohm
  • DC Resistance (DCR) - Secondary24Ohm
  • Frequency Response±1.5dB
  • Power Level2W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 109G from Hammond Manufacturing only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
