  • Harris Corporation
  • CD74HC109E
  • Integrated Circuits (ICs)

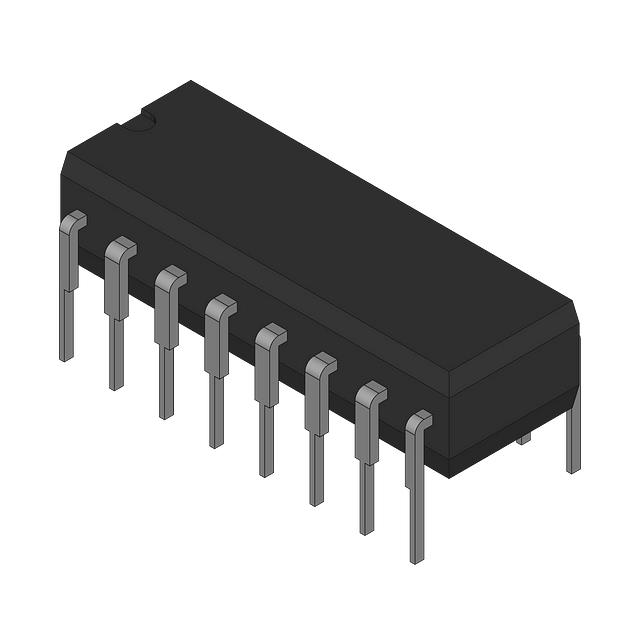

  • IC FF JK TYPE DUAL 1BIT 16DIP
  •  CD74HC109E Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerHarris Corporation
  • CategoryIntegrated Circuits (ICs)
  • PackagesTube
  • Standard Quantity944
  • DescriptionFlip Flop 2 Element JK Type 1 Bit Positive Edge 16-DIP (0.300", 7.62mm)
  • Package / Case16-DIP (0.300", 7.62mm)
  • Output TypeComplementary
  • Mounting TypeThrough Hole
  • Number of Elements2
  • FunctionSet(Preset) and Reset
  • TypeJK Type
  • Operating Temperature-55°C ~ 125°C (TA)
  • Voltage - Supply2V ~ 6V
  • Current - Quiescent (Iq)4 µA
  • Current - Output High, Low5.2mA, 5.2mA
  • Trigger TypePositive Edge
  • Clock Frequency60 MHz
  • Input Capacitance10 pF
  • Supplier Device Package16-PDIP
  • Max Propagation Delay @ V, Max CL31ns @ 6V, 50pF
  • Number of Bits per Element1

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new CD74HC109E from Harris Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 38,634
Please send an RFQ for instant price and inventory.
