  • Harris Corporation
  • HGTG12N60D1D
  • Discrete Semiconductor Products
  • UFS SERIES N-CHANNEL IGBT
  •  HGTG12N60D1D Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerHarris Corporation
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity44
  • DescriptionIGBT 600 V 21 A 75 W Through Hole TO-247

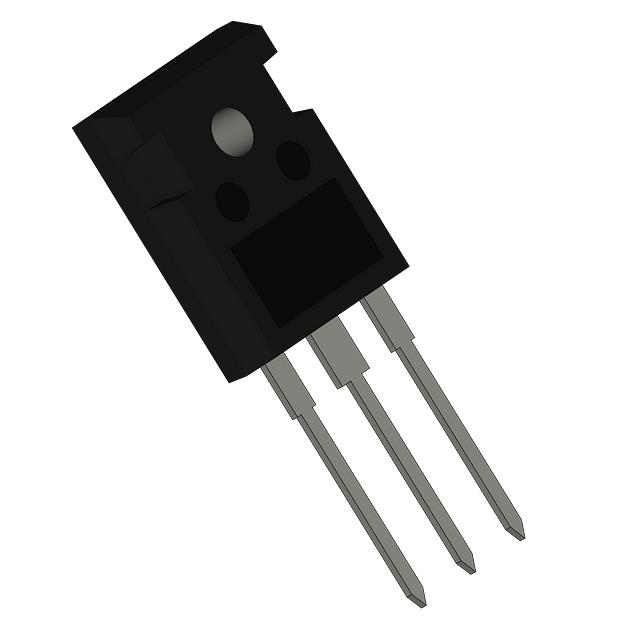

  • Package / CaseTO-247-3
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Input TypeStandard
  • Reverse Recovery Time (trr)60 ns
  • Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 12A
  • Supplier Device PackageTO-247
  • Gate Charge70 nC
  • Current - Collector (Ic) (Max)21 A
  • Voltage - Collector Emitter Breakdown (Max)600 V
  • Current - Collector Pulsed (Icm)48 A
  • Power - Max75 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new HGTG12N60D1D from Harris Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 606
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
