  • Harris Corporation
  • HUF76129P3
  • Discrete Semiconductor Products
  • N-CHANNEL POWER MOSFET
  •  HUF76129P3 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerHarris Corporation
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity365
  • DescriptionN-Channel 30 V 56A (Tc) 105W (Tc) Through Hole TO-220AB

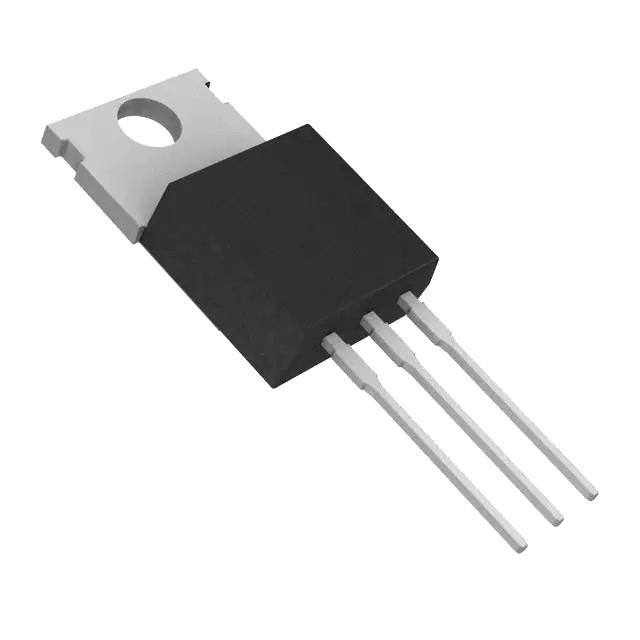

  • Package / CaseTO-220-3
  • Mounting TypeThrough Hole
  • Operating Temperature-40°C ~ 150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C56A (Tc)
  • Rds On (Max) @ Id, Vgs16mOhm @ 56A, 10V
  • Power Dissipation (Max)105W (Tc)
  • Vgs(th) (Max) @ Id3V @ 250µA
  • Supplier Device PackageTO-220AB
  • Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
  • Vgs (Max)±20V
  • Drain to Source Voltage (Vdss)30 V
  • Gate Charge (Qg) (Max) @ Vgs45 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds1350 pF @ 25 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new HUF76129P3 from Harris Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 24,454
Please send an RFQ for instant price and inventory.
