  • Harris Corporation
  • DG409DY
  • Integrated Circuits (ICs)

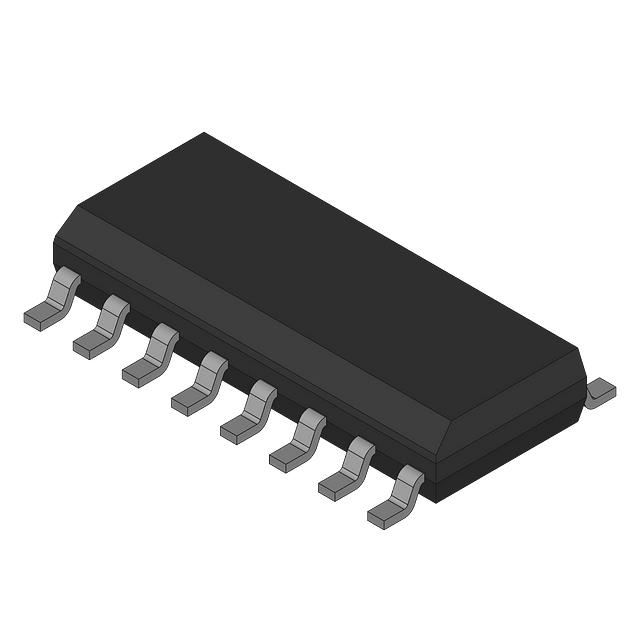

  • IC SWITCH SP4T X 2 100OHM 16SOIC
  •  DG409DY Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerHarris Corporation
  • CategoryIntegrated Circuits (ICs)
  • PackagesBulk
  • Standard Quantity141
  • Description2 Circuit IC Switch 4:1 100Ohm 16-SOIC
  • Package / Case16-SOIC (0.154", 3.90mm Width)
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 85°C (TA)
  • On-State Resistance (Max)100Ohm
  • Supplier Device Package16-SOIC
  • Voltage - Supply, Single (V+)5V ~ 34V
  • Voltage - Supply, Dual (V±)±5V ~ 20V
  • Charge Injection20pC
  • Switch CircuitSP4T
  • Multiplexer/Demultiplexer Circuit4:1
  • Channel-to-Channel Matching (ΔRon)15Ohm (Max)
  • Switch Time (Ton, Toff) (Max)150ns, 150ns
  • Channel Capacitance (CS(off), CD(off))3pF, 14pF
  • Current - Leakage (IS(off)) (Max)500pA
  • Number of Circuits2

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new DG409DY from Harris Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,839
Please send an RFQ for instant price and inventory.
