  • Harris Corporation
  • RF1S50N06
  • Discrete Semiconductor Products
  • 50A, 60V, 0.022 OHM, N-CHANNEL
  •  RF1S50N06 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerHarris Corporation
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity290
  • DescriptionN-Channel 60 V 50A (Tc) 131W (Tc) Through Hole I2PAK (TO-262)

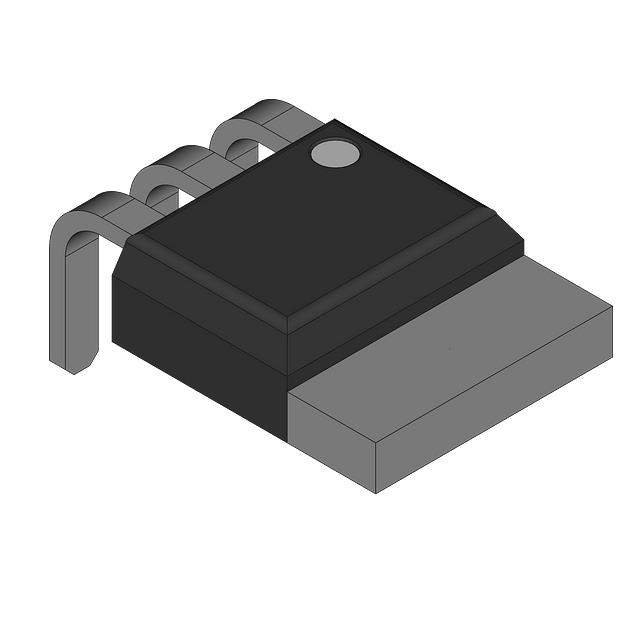

  • Package / CaseTO-262-3 Long Leads, I2PAK, TO-262AA
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 175°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C50A (Tc)
  • Rds On (Max) @ Id, Vgs22mOhm @ 50A, 10V
  • Power Dissipation (Max)131W (Tc)
  • Vgs(th) (Max) @ Id4V @ 250µA
  • Supplier Device PackageI2PAK (TO-262)
  • Drive Voltage (Max Rds On, Min Rds On)10V
  • Vgs (Max)±20V
  • Drain to Source Voltage (Vdss)60 V
  • Gate Charge (Qg) (Max) @ Vgs150 nC @ 20 V
  • Input Capacitance (Ciss) (Max) @ Vds2020 pF @ 25 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new RF1S50N06 from Harris Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,746
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
