  • Harris Corporation
  • HGT1S7N60C3DS9A
  • Discrete Semiconductor Products
  • 14A, 600V, UFS N-CHANNEL IGBT W/
  •  HGT1S7N60C3DS9A Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerHarris Corporation
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity133
  • DescriptionIGBT 600 V 14 A 60 W Surface Mount TO-263AB

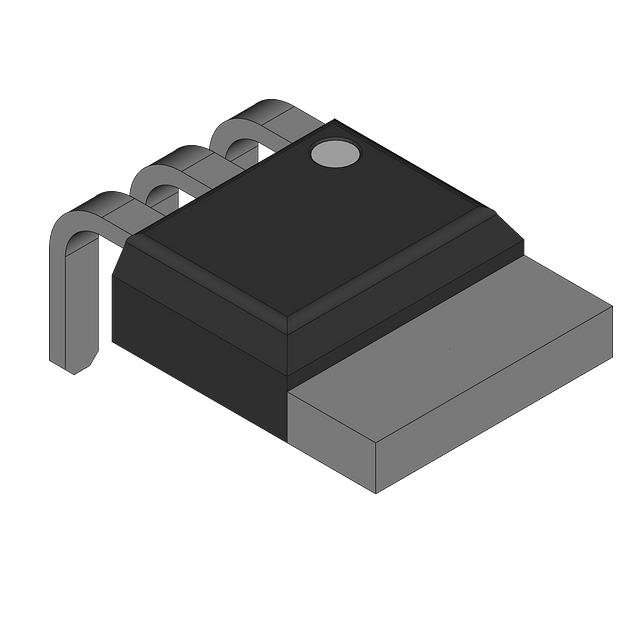

  • Package / CaseTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
  • Mounting TypeSurface Mount
  • Input TypeStandard
  • Reverse Recovery Time (trr)37 ns
  • Vce(on) (Max) @ Vge, Ic2V @ 15V, 7A
  • Supplier Device PackageTO-263AB
  • Switching Energy165µJ (on), 600µJ (off)
  • Test Condition480V, 7A, 50Ohm, 15V
  • Gate Charge23 nC
  • Current - Collector (Ic) (Max)14 A
  • Voltage - Collector Emitter Breakdown (Max)600 V
  • Current - Collector Pulsed (Icm)56 A
  • Power - Max60 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new HGT1S7N60C3DS9A from Harris Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 25,600
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
