Product Specifications
  • AttributesAttribute Value
  • ManufacturerHarwin
  • CategoryConnectors, Interconnects
  • PackagesTube
  • Standard Quantity14

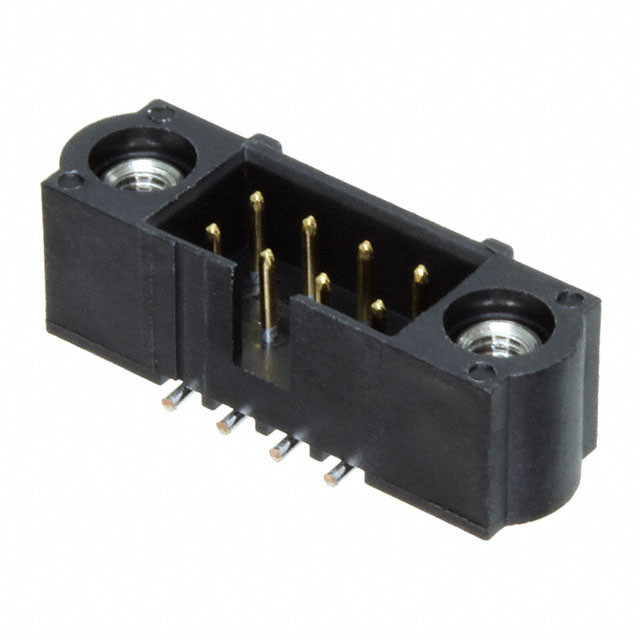

  • DescriptionConnector Header Surface Mount 8 position 0.079" (2.00mm)
  • FeaturesKeying Slot, Mating Flange
  • Connector TypeHeader
  • Voltage Rating800V
  • Current Rating (Amps)2.2A
  • Mounting TypeSurface Mount
  • Number of Positions8
  • Number of Rows2
  • StyleBoard to Board or Cable
  • Operating Temperature-55°C ~ 125°C
  • Contact TypeMale Pin
  • Fastening TypeThreaded
  • Number of Positions LoadedAll
  • TerminationSolder
  • Material Flammability RatingUL94 V-0
  • Contact MaterialPhosphor Bronze
  • Mated Stacking Heights7.55mm, 7.95mm, 10.1mm, 11.1mm, 13.65mm, 15.1mm
  • Insulation ColorBlack
  • Pitch - Mating0.079" (2.00mm)
  • Contact Finish - MatingGold
  • Contact Finish Thickness - Mating29.5µin (0.75µm)
  • Contact Finish - PostTin
  • Contact Finish Thickness - Post118.1µin (3.00µm)
  • Contact ShapeCircular
  • Insulation Height0.220" (5.60mm)
  • ShroudingShrouded - 4 Wall
  • Insulation MaterialPolyphenylene Sulfide (PPS), Glass Filled
  • Row Spacing - Mating0.079" (2.00mm)

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new M80-5020842 from Harwin only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 167
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
