HIF3FC-20PA-2.54DS(71) Hirose Electric Co., Ltd. Order From Hard Find Electronics

Electronic Components

At Hard Find Electronics Tech, we source hard-to-find electronic components and manage supply, cost reduction, excess inventory management, and more.

Hirose Electric Co., Ltd.

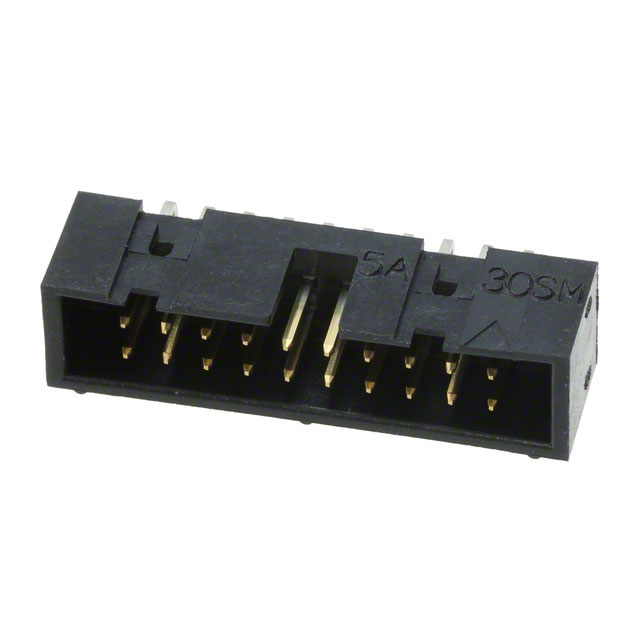

HIF3FC-20PA-2.54DS(71)
Connectors, Interconnects
CONN HEADER R/A 20POS 2.54MM
HIF3FC-20PA-2.54DS(71) Datasheet

Cost
Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerHirose Electric Co., Ltd.
CategoryConnectors, Interconnects
PackagesTray
Standard Quantity90
DescriptionConnector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
FeaturesKeying Slot
Connector TypeHeader
Voltage Rating200V
Current Rating (Amps)1A
Mounting TypeThrough Hole, Right Angle
Number of Positions20
Number of Rows2
StyleBoard to Board or Cable
Operating Temperature-55°C ~ 85°C
Contact TypeMale Pin
Fastening TypePush-Pull
Number of Positions LoadedAll
TerminationSolder
Material Flammability RatingUL94 V-0
Contact MaterialBrass
Insulation ColorBlack
Pitch - Mating0.100" (2.54mm)
Contact Finish - MatingGold
Contact Finish Thickness - Mating8.00µin (0.203µm)
Contact Finish - PostTin
Contact Finish Thickness - Post78.7µin (2.00µm)
Contact ShapeSquare
Contact Length - Post0.118" (3.00mm)
Insulation Height0.335" (8.51mm)
ShroudingShrouded - 4 Wall
Insulation MaterialPolybutylene Terephthalate (PBT)
Row Spacing - Mating0.100" (2.54mm)
Contact Length - Mating0.236" (6.00mm)

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new HIF3FC-20PA-2.54DS(71) from Hirose Electric Co., Ltd. only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide

RFQ

Source at least two reliable suppliers
QUOTE

Information checking available/price/condition
QC PROCESS

3-Step Quality Control and Professional Third-Party Test
SHIPMENT

FedEx, DHL, UPS, TNT

In Stock: 1,721

Please send an RFQ for instant price and inventory.

Fast Shipping

QUANTITY

Multiples of 1
