Product Specifications
  • AttributesAttribute Value
  • ManufacturerInternational Rectifier
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity110

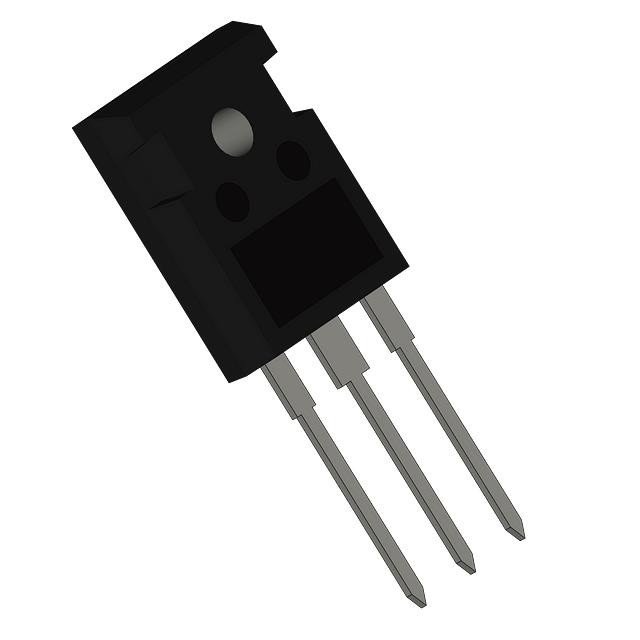

  • DescriptionIGBT Trench 600 V 76 A 268 W Through Hole TO-247AD
  • Package / CaseTO-247-3
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 175°C (TJ)
  • Input TypeStandard
  • Vce(on) (Max) @ Vge, Ic1.85V @ 15V, 35A
  • Supplier Device PackageTO-247AD
  • IGBT TypeTrench
  • Td (on/off) @ 25°C46ns/105ns
  • Switching Energy390µJ (on), 632µJ (off)
  • Test Condition400V, 35A, 10Ohm, 15V
  • Gate Charge104 nC
  • Current - Collector (Ic) (Max)76 A
  • Voltage - Collector Emitter Breakdown (Max)600 V
  • Current - Collector Pulsed (Icm)105 A
  • Power - Max268 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new IRGP4069-EPBF from International Rectifier only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 7,600
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
