  • Intersil (Renesas Electronics Corporation)

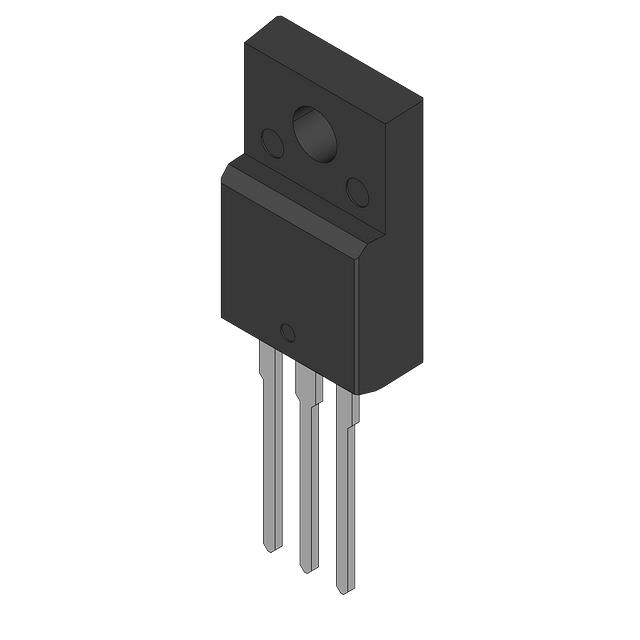

  • 2SA1720-AZ
  • Discrete Semiconductor Products
  • POWER BIPOLAR TRANSISTOR, PNP
  •  2SA1720-AZ Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerIntersil (Renesas Electronics Corporation)
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity195
  • DescriptionBipolar (BJT) Transistor PNP - Darlington 100 V 3 A 100MHz 2 W Through Hole TO-220F
  • Package / CaseTO-220-3 Full Pack
  • Mounting TypeThrough Hole
  • Transistor TypePNP - Darlington
  • Operating Temperature150°C (TJ)
  • Vce Saturation (Max) @ Ib, Ic1.5V @ 5mA, 5A
  • Current - Collector Cutoff (Max)10µA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce4000 @ 5A, 2V
  • Frequency - Transition100MHz
  • Supplier Device PackageTO-220F
  • Current - Collector (Ic) (Max)3 A
  • Voltage - Collector Emitter Breakdown (Max)100 V
  • Power - Max2 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 2SA1720-AZ from Intersil (Renesas Electronics Corporation) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 857
Please send an RFQ for instant price and inventory.
