  • Intersil (Renesas Electronics Corporation)

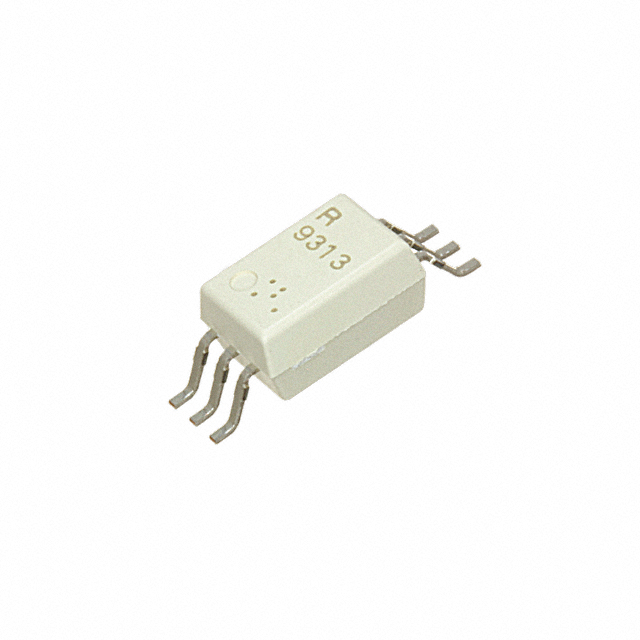

  • PS9307AL-E3-AX
  • Isolators
  • OPTOISO 5KV 1CH GATE DVR 6SDIP
  •  PS9307AL-E3-AX Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerIntersil (Renesas Electronics Corporation)
  • CategoryIsolators
  • PackagesTape & Reel (TR)
  • Standard Quantity2000
  • Description600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SDIP Gull Wing
  • Package / Case6-SOIC (0.268", 6.80mm Width)
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 125°C
  • Voltage - Forward (Vf) (Typ)1.56V
  • Current - Peak Output600mA
  • TechnologyOptical Coupling
  • Current - Output High, Low400mA, 400mA
  • Voltage - Isolation5000Vrms
  • Approval AgencyCSA, SEMKO, UL, VDE
  • Supplier Device Package6-SDIP Gull Wing
  • Rise / Fall Time (Typ)6ns, 7ns
  • Common Mode Transient Immunity (Min)50kV/µs
  • Propagation Delay tpLH / tpHL (Max)150ns, 150ns
  • Pulse Width Distortion (Max)50ns
  • Number of Channels1
  • Current - DC Forward (If) (Max)25 mA
  • Voltage - Output Supply10V ~ 30V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PS9307AL-E3-AX from Intersil (Renesas Electronics Corporation) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,000
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
