HAT2160H-EL-E Intersil (Renesas Electronics Corporation) Order From Hard Find Electronics

Electronic Components

At Hard Find Electronics Tech, we source hard-to-find electronic components and manage supply, cost reduction, excess inventory management, and more.

Intersil (Renesas Electronics Corporation)
HAT2160H-EL-E
Discrete Semiconductor Products

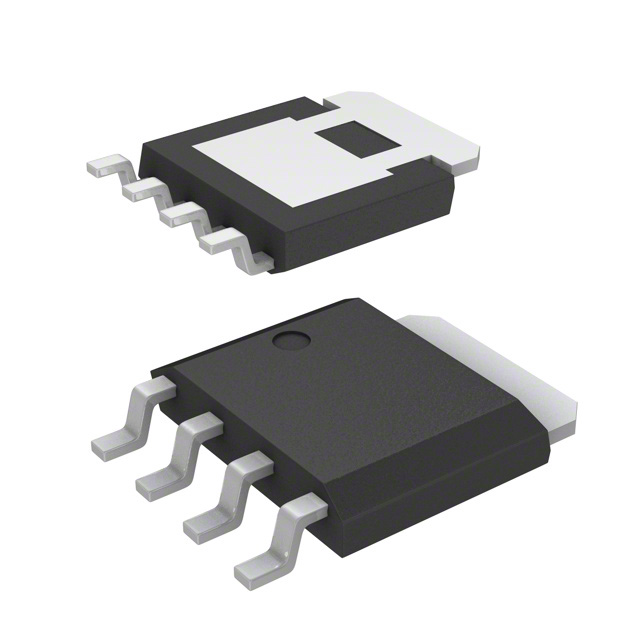

MOSFET N-CH 20V 60A LFPAK
HAT2160H-EL-E Datasheet

Cost Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerIntersil (Renesas Electronics Corporation)
CategoryDiscrete Semiconductor Products
PackagesTape & Reel (TR)
Standard Quantity2500
DescriptionN-Channel 20 V 60A (Ta) 30W (Tc) Surface Mount LFPAK
Package / CaseSC-100, SOT-669
Mounting TypeSurface Mount
Operating Temperature150°C (TJ)
TechnologyMOSFET (Metal Oxide)
FET TypeN-Channel
Current - Continuous Drain (Id) @ 25°C60A (Ta)
Rds On (Max) @ Id, Vgs2.6mOhm @ 30A, 10V
Power Dissipation (Max)30W (Tc)
Vgs(th) (Max) @ Id2.3V @ 1mA
Supplier Device PackageLFPAK
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Vgs (Max)±20V
Drain to Source Voltage (Vdss)20 V
Gate Charge (Qg) (Max) @ Vgs54 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds7750 pF @ 10 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new HAT2160H-EL-E from Intersil (Renesas Electronics Corporation) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide

RFQ

Source at least two reliable suppliers
QUOTE

Information checking available/price/condition
QC PROCESS

3-Step Quality Control and Professional Third-Party Test
SHIPMENT

FedEx, DHL, UPS, TNT

In Stock: 0

Please send an RFQ for instant price and inventory.

Fast Shipping

QUANTITY

Multiples of 1
