• Intersil (Renesas Electronics Corporation)
• HAT2166H-EL-E
• Discrete Semiconductor Products

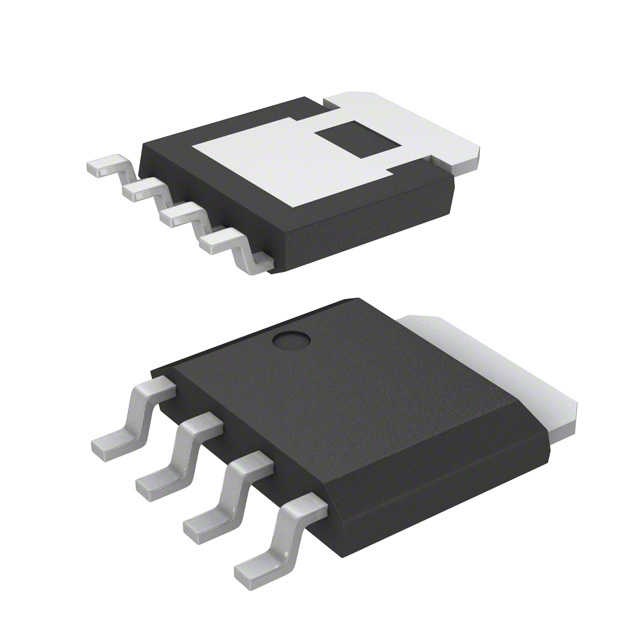

• MOSFET N-CH 30V 45A LFPAK
•  HAT2166H-EL-E Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerIntersil (Renesas Electronics Corporation)
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity2500
• DescriptionN-Channel 30 V 45A (Ta) 25W (Tc) Surface Mount LFPAK
• Package / CaseSC-100, SOT-669
• Mounting TypeSurface Mount
• Operating Temperature150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C45A (Ta)
• Rds On (Max) @ Id, Vgs3.8mOhm @ 22.5A, 10V
• Power Dissipation (Max)25W (Tc)
• Vgs(th) (Max) @ Id2.5V @ 1mA
• Supplier Device PackageLFPAK
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)30 V
• Gate Charge (Qg) (Max) @ Vgs27 nC @ 4.5 V
• Input Capacitance (Ciss) (Max) @ Vds4400 pF @ 10 V
