  • Intersil (Renesas Electronics Corporation)
  • RJK03M1DPA-00#J5A
  • Discrete Semiconductor Products

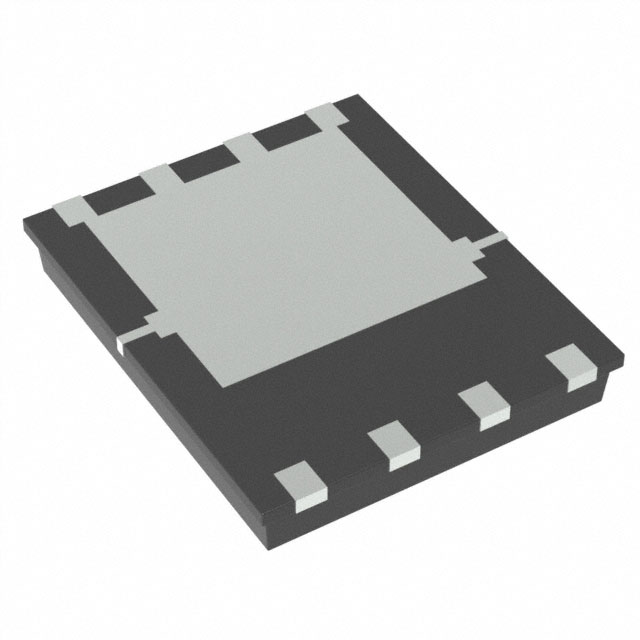

  • MOSFET N-CH 30V 50A 8WPAK
  •  RJK03M1DPA-00#J5A Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerIntersil (Renesas Electronics Corporation)
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity3000
  • DescriptionN-Channel 30 V 50A (Ta) 45W (Tc) Surface Mount WPAK(3F) (5x6)
  • Package / Case8-PowerVDFN
  • Mounting TypeSurface Mount
  • Operating Temperature150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C50A (Ta)
  • Rds On (Max) @ Id, Vgs2.3mOhm @ 25A, 10V
  • Power Dissipation (Max)45W (Tc)
  • Supplier Device PackageWPAK(3F) (5x6)
  • Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
  • Vgs (Max)±20V
  • Drain to Source Voltage (Vdss)30 V
  • Gate Charge (Qg) (Max) @ Vgs25 nC @ 4.5 V
  • Input Capacitance (Ciss) (Max) @ Vds4720 pF @ 10 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new RJK03M1DPA-00#J5A from Intersil (Renesas Electronics Corporation) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 8,848
Please send an RFQ for instant price and inventory.
