  • IR (Infineon Technologies)
  • IRGR3B60KD2PBF
  • Discrete Semiconductor Products

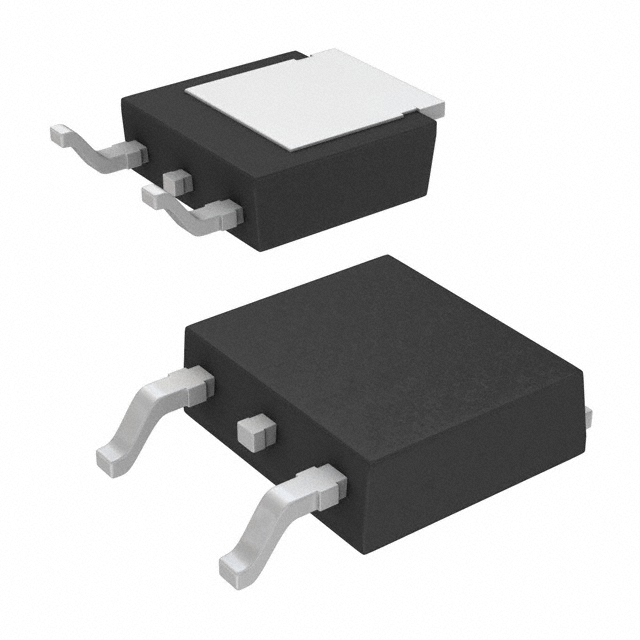

  • IGBT NPT 600V 7.8A TO252AA
  •  IRGR3B60KD2PBF Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerIR (Infineon Technologies)
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity3000
  • DescriptionIGBT NPT 600 V 7.8 A 52 W Surface Mount TO-252AA (DPAK)
  • Package / CaseTO-252-3, DPAK (2 Leads + Tab), SC-63
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Input TypeStandard
  • Reverse Recovery Time (trr)77 ns
  • Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 3A
  • Supplier Device PackageTO-252AA (DPAK)
  • IGBT TypeNPT
  • Td (on/off) @ 25°C18ns/110ns
  • Switching Energy62µJ (on), 39µJ (off)
  • Test Condition400V, 3A, 100Ohm, 15V
  • Gate Charge13 nC
  • Current - Collector (Ic) (Max)7.8 A
  • Voltage - Collector Emitter Breakdown (Max)600 V
  • Current - Collector Pulsed (Icm)15.6 A
  • Power - Max52 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new IRGR3B60KD2PBF from IR (Infineon Technologies) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
