  • IR (Infineon Technologies)

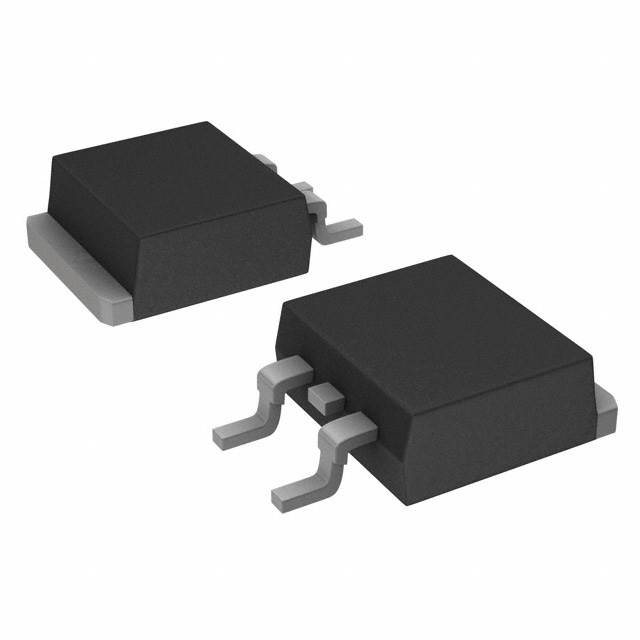

  • IGB01N120H2ATMA1
  • Discrete Semiconductor Products
  • IGBT 1200V 3.2A 28W TO263-3-2
  •  IGB01N120H2ATMA1 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerIR (Infineon Technologies)
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity1000
  • DescriptionIGBT 1200 V 3.2 A 28 W Surface Mount PG-TO263-3-2
  • Package / CaseTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 150°C (TJ)
  • Input TypeStandard
  • Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 1A
  • Supplier Device PackagePG-TO263-3-2
  • Td (on/off) @ 25°C13ns/370ns
  • Switching Energy140µJ
  • Test Condition800V, 1A, 241Ohm, 15V
  • Gate Charge8.6 nC
  • Current - Collector (Ic) (Max)3.2 A
  • Voltage - Collector Emitter Breakdown (Max)1200 V
  • Current - Collector Pulsed (Icm)3.5 A
  • Power - Max28 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new IGB01N120H2ATMA1 from IR (Infineon Technologies) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
