  • J.W. Miller / Bourns

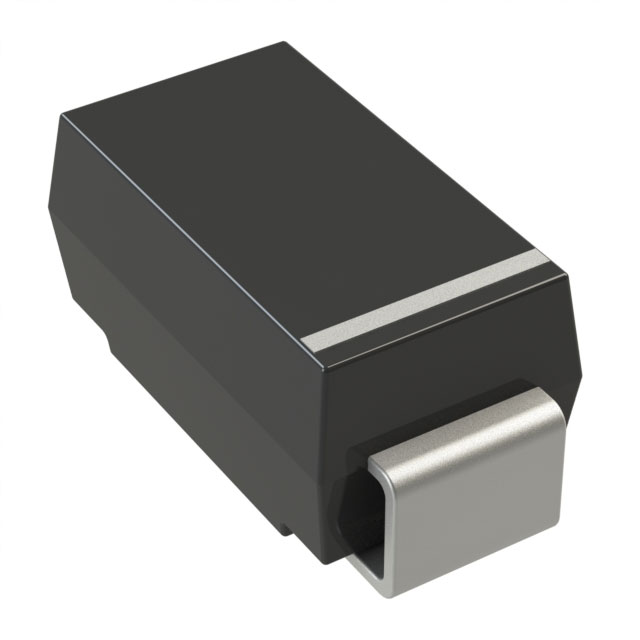

  • CD214A-B120LF
  • Discrete Semiconductor Products
  • DIODE SCHOTTKY 20V 1A DO214AC
  •  CD214A-B120LF Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerJ.W. Miller / Bourns
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity5000
  • DescriptionDiode 20 V 1A Surface Mount DO-214AC (SMA)
  • Package / CaseDO-214AC, SMA
  • Mounting TypeSurface Mount
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • TechnologySchottky
  • Capacitance @ Vr, F110pF @ 4V, 1MHz
  • Current - Average Rectified (Io)1A
  • Supplier Device PackageDO-214AC (SMA)
  • Operating Temperature - Junction-55°C ~ 125°C
  • Voltage - DC Reverse (Vr) (Max)20 V
  • Voltage - Forward (Vf) (Max) @ If500 mV @ 1 A
  • Current - Reverse Leakage @ Vr500 µA @ 20 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new CD214A-B120LF from J.W. Miller / Bourns only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
