  • Linear Technology (Analog Devices, Inc.)
  • MX7534KP+
  • Integrated Circuits (ICs)

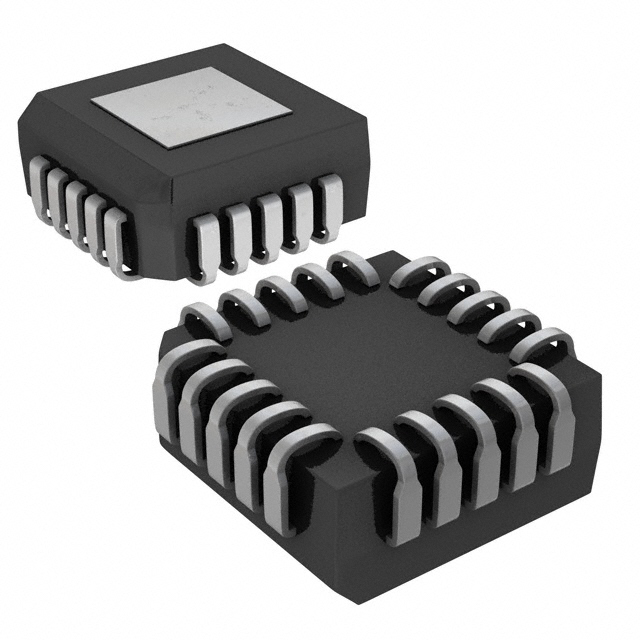

  • IC DAC 14BIT A-OUT 20PLCC
  •  MX7534KP+ Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerLinear Technology (Analog Devices, Inc.)
  • CategoryIntegrated Circuits (ICs)
  • PackagesTube
  • Standard Quantity49
  • Description14 Bit Digital to Analog Converter 1 20-PLCC (9x9)
  • Package / Case20-LCC (J-Lead)
  • Output TypeCurrent - Unbuffered
  • Mounting TypeSurface Mount
  • Number of Bits14
  • Data InterfaceParallel
  • Reference TypeExternal
  • Operating Temperature0°C ~ 70°C
  • Voltage - Supply, Analog11.4V ~ 15.75V
  • Voltage - Supply, Digital11.4V ~ 15.75V
  • Settling Time1.5µs
  • Supplier Device Package20-PLCC (9x9)
  • ArchitectureR-2R
  • Number of D/A Converters1
  • INL/DNL (LSB)±1 (Max), ±1 (Max)
  • Differential OutputNo
  • DigiKey ProgrammableNot Verified

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new MX7534KP+ from Linear Technology (Analog Devices, Inc.) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 18
Please send an RFQ for instant price and inventory.
