  • Linear Technology (Analog Devices, Inc.)
  • AD8224BCPZ-WP
  • Integrated Circuits (ICs)
  • IC INST AMP 2 CIRCUIT 16LFCSP
  •  AD8224BCPZ-WP Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerLinear Technology (Analog Devices, Inc.)
  • CategoryIntegrated Circuits (ICs)
  • PackagesTray
  • Standard Quantity64
  • DescriptionInstrumentation Amplifier 2 Circuit Rail-to-Rail 16-LFCSP (4x4)

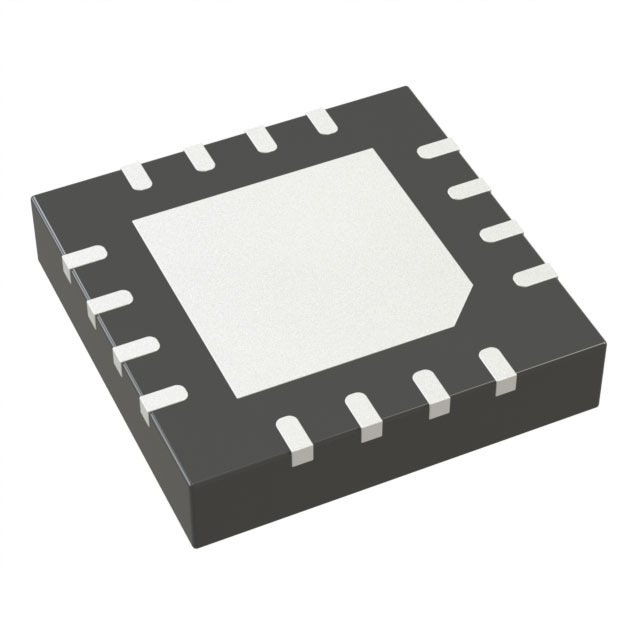

  • Package / Case16-WQFN Exposed Pad, CSP
  • Output TypeRail-to-Rail
  • Mounting TypeSurface Mount
  • Amplifier TypeInstrumentation
  • Operating Temperature-40°C ~ 85°C
  • Current - Supply750µA (x2 Channels)
  • Slew Rate2V/µs
  • Current - Input Bias10 pA
  • Voltage - Input Offset175 µV
  • Supplier Device Package16-LFCSP (4x4)
  • Number of Circuits2
  • Current - Output / Channel15 mA
  • -3db Bandwidth1.5 MHz
  • Voltage - Supply Span (Min)4.5 V
  • Voltage - Supply Span (Max)36 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new AD8224BCPZ-WP from Linear Technology (Analog Devices, Inc.) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 72
Please send an RFQ for instant price and inventory.
