  • Linear Technology (Analog Devices, Inc.)
  • AD5424YCPZ
  • Integrated Circuits (ICs)
  • IC DAC 8BIT A-OUT 20LFCSP
  •  AD5424YCPZ Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerLinear Technology (Analog Devices, Inc.)
  • CategoryIntegrated Circuits (ICs)
  • PackagesTray
  • Standard Quantity1

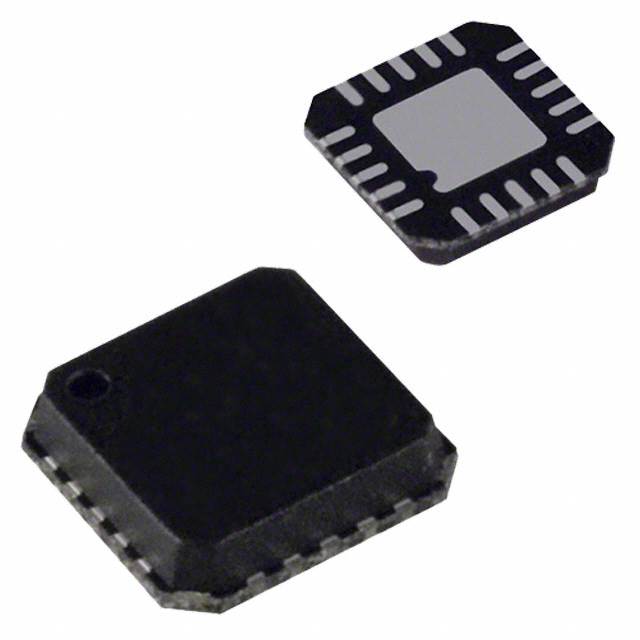

  • Description8 Bit Digital to Analog Converter 1 20-LFCSP (4x4)
  • Package / Case20-WFQFN Exposed Pad, CSP
  • Output TypeCurrent - Unbuffered
  • Mounting TypeSurface Mount
  • Number of Bits8
  • Data InterfaceParallel
  • Reference TypeExternal
  • Operating Temperature-40°C ~ 125°C
  • Voltage - Supply, Analog2.5V ~ 5.5V
  • Voltage - Supply, Digital2.5V ~ 5.5V
  • Settling Time120ns
  • Supplier Device Package20-LFCSP (4x4)
  • ArchitectureR-2R
  • Number of D/A Converters1
  • INL/DNL (LSB)±0.25 (Max), ±0.5 (Max)
  • Differential OutputYes
  • DigiKey ProgrammableNot Verified

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new AD5424YCPZ from Linear Technology (Analog Devices, Inc.) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 199
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
