  • Linear Technology (Analog Devices, Inc.)
  • 5962-8996101EA
  • Integrated Circuits (ICs)

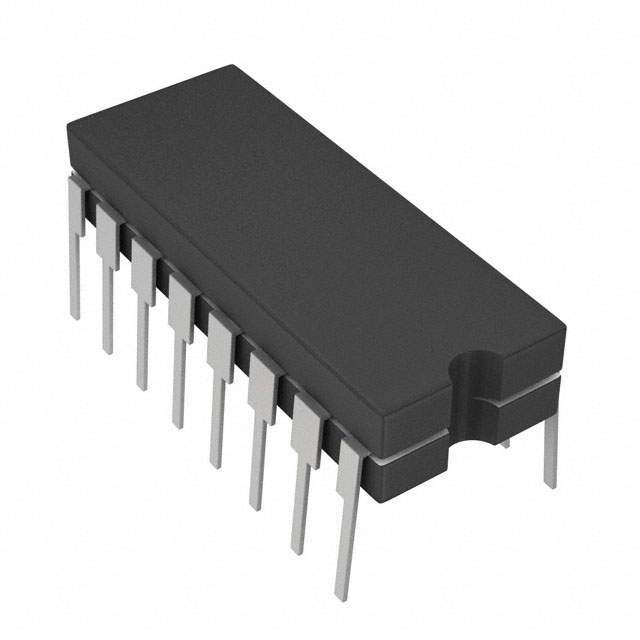

  • IC SWITCH DPST-NOX2 30OHM 16CDIP
  •  5962-8996101EA Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerLinear Technology (Analog Devices, Inc.)
  • CategoryIntegrated Circuits (ICs)
  • PackagesTube
  • Standard Quantity25
  • Description2 Circuit IC Switch 2:1 30Ohm 16-CDIP
  • Package / Case16-CDIP (0.300", 7.62mm)
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 125°C (TA)
  • On-State Resistance (Max)30Ohm
  • Supplier Device Package16-CDIP
  • Voltage - Supply, Single (V+)10V ~ 30V
  • Voltage - Supply, Dual (V±)±4.5V ~ 20V
  • Charge Injection10pC
  • Crosstalk-90dB @ 1MHz
  • Switch CircuitDPST - NO
  • Multiplexer/Demultiplexer Circuit2:1
  • Channel-to-Channel Matching (ΔRon)500mOhm
  • Switch Time (Ton, Toff) (Max)150ns, 100ns
  • Channel Capacitance (CS(off), CD(off))12pF, 12pF
  • Current - Leakage (IS(off)) (Max)250pA
  • Number of Circuits2

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 5962-8996101EA from Linear Technology (Analog Devices, Inc.) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
