Product Specifications
  • AttributesAttribute Value
  • ManufacturerLittelfuse / C&K
  • CategorySwitches
  • PackagesTube
  • Standard Quantity25

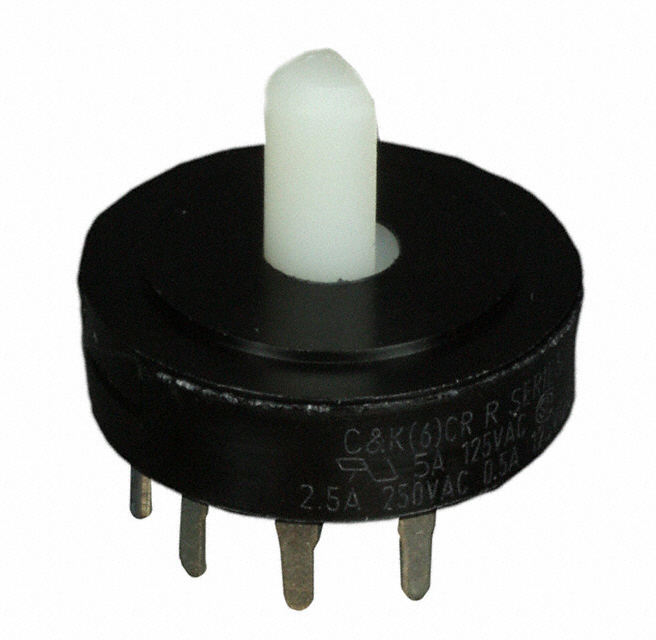

  • DescriptionRotary Switch 3 Position SP3T, Adjacent Contact 5A (AC), 500mA (DC) 125 VAC Through Hole
  • Contact FinishSilver
  • Current Rating (Amps)5A (AC), 500mA (DC)
  • Mounting TypeThrough Hole
  • Number of Positions3
  • Termination StylePC Pin
  • Actuator Length9.53mm
  • Actuator TypeFlatted (6.35mm Dia)
  • Angle of Throw36°
  • Number of Decks1
  • Number of Poles per Deck1
  • Circuit per DeckSP3T, Adjacent Contact
  • Contact MaterialCopper
  • Contact TimingNon-Shorting (BBM)
  • Index StopsFixed
  • Depth Behind Panel10.29mm
  • Voltage Rating - AC125 V
  • Voltage Rating - DC125 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new R10305RN02Q from Littelfuse / C&K only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 129
Please send an RFQ for instant price and inventory.
