  • Littelfuse / IXYS RF
  • IXYP30N120A4
  • Discrete Semiconductor Products

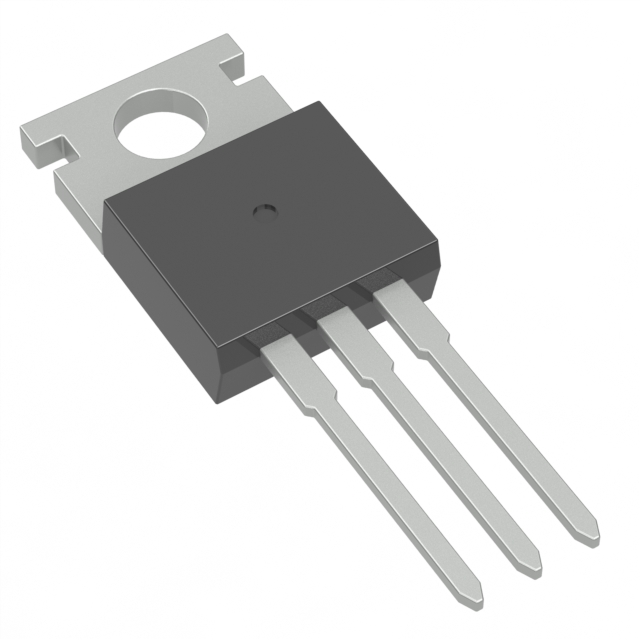

  • IGBT DISCRETE TO-220
  •  IXYP30N120A4 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerLittelfuse / IXYS RF
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity50
  • DescriptionIGBT 1200 V 106 A 500 W Through Hole TO-220 (IXYP)
  • Package / CaseTO-220-3
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 175°C (TJ)
  • Input TypeStandard
  • Reverse Recovery Time (trr)42 ns
  • Vce(on) (Max) @ Vge, Ic1.9V @ 15V, 25A
  • Supplier Device PackageTO-220 (IXYP)
  • Td (on/off) @ 25°C15ns/235ns
  • Switching Energy4mJ (on), 3.4mJ (off)
  • Test Condition960V, 25A, 5Ohm, 15V
  • Gate Charge57 nC
  • Current - Collector (Ic) (Max)106 A
  • Voltage - Collector Emitter Breakdown (Max)1200 V
  • Current - Collector Pulsed (Icm)184 A
  • Power - Max500 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new IXYP30N120A4 from Littelfuse / IXYS RF only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
