  • Littelfuse / IXYS RF
  • IXGH24N120C3
  • Discrete Semiconductor Products
  • IGBT PT 1200V 48A TO247AD
  •  IXGH24N120C3 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerLittelfuse / IXYS RF
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity30
  • DescriptionIGBT PT 1200 V 48 A 250 W Through Hole TO-247AD

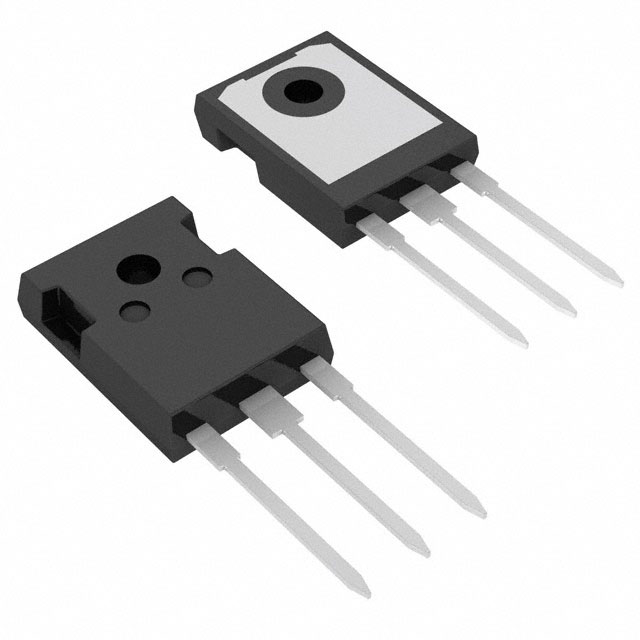

  • Package / CaseTO-247-3
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Input TypeStandard
  • Vce(on) (Max) @ Vge, Ic4.2V @ 15V, 20A
  • Supplier Device PackageTO-247AD
  • IGBT TypePT
  • Td (on/off) @ 25°C16ns/93ns
  • Switching Energy1.16mJ (on), 470µJ (off)
  • Test Condition600V, 20A, 5Ohm, 15V
  • Gate Charge79 nC
  • Current - Collector (Ic) (Max)48 A
  • Voltage - Collector Emitter Breakdown (Max)1200 V
  • Current - Collector Pulsed (Icm)96 A
  • Power - Max250 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new IXGH24N120C3 from Littelfuse / IXYS RF only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
