Sourcing Hard-To-Find Electronic ComponentsCustomers Reviews | News
  • Littelfuse / IXYS RF

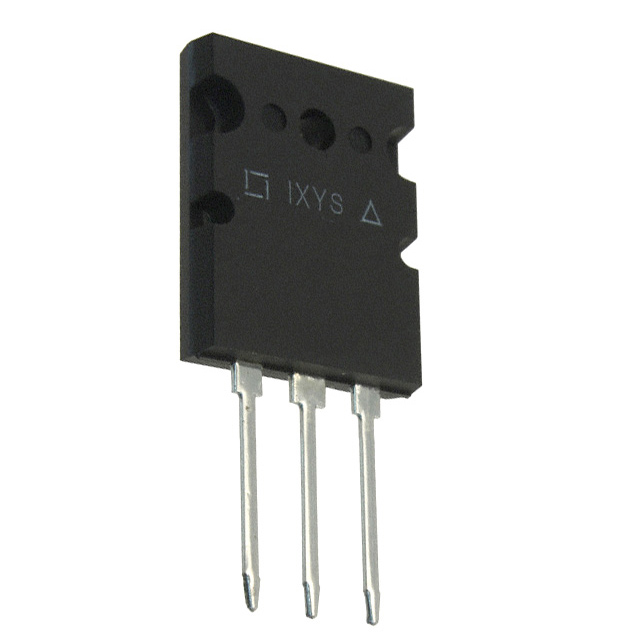

  • IXGK72N60A3H1
  • Discrete Semiconductor Products
  • IGBT 600V 75A 540W TO264
  •  IXGK72N60A3H1 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerLittelfuse / IXYS RF
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity25
  • DescriptionIGBT PT 600 V 75 A 540 W Through Hole TO-264 (IXGK)
  • Package / CaseTO-264-3, TO-264AA
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Input TypeStandard
  • Reverse Recovery Time (trr)140 ns
  • Vce(on) (Max) @ Vge, Ic1.35V @ 15V, 60A
  • Supplier Device PackageTO-264 (IXGK)
  • IGBT TypePT
  • Td (on/off) @ 25°C31ns/320ns
  • Switching Energy1.4mJ (on), 3.5mJ (off)
  • Test Condition480V, 50A, 3Ohm, 15V
  • Gate Charge230 nC
  • Current - Collector (Ic) (Max)75 A
  • Voltage - Collector Emitter Breakdown (Max)600 V
  • Current - Collector Pulsed (Icm)400 A
  • Power - Max540 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new IXGK72N60A3H1 from Littelfuse / IXYS RF only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
