• Littelfuse / IXYS RF
• CS23-16IO2
• Discrete Semiconductor Products

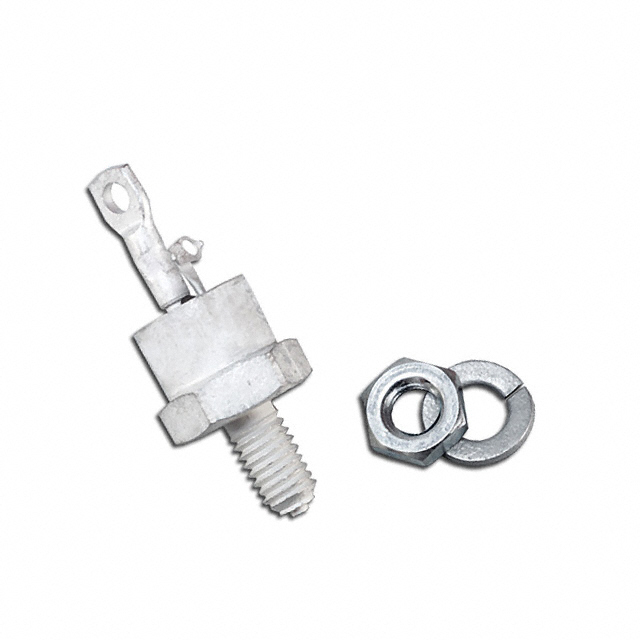

• SCR 1.6KV 50A TO208AA
•  CS23-16IO2 Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerLittelfuse / IXYS RF
• CategoryDiscrete Semiconductor Products
• PackagesBulk
• Standard Quantity10
• DescriptionSCR 1.6 kV 50 A Standard Recovery Chassis, Stud Mount TO-208AA (TO-48)
• Package / CaseTO-208AA, TO-48-3, Stud
• Mounting TypeChassis, Stud Mount
• SCR TypeStandard Recovery
• Operating Temperature-40°C ~ 125°C
• Current - Hold (Ih) (Max)100 mA
• Current - Gate Trigger (Igt) (Max)50 mA
• Current - Non Rep. Surge 50, 60Hz (Itsm)450A, 480A
• Current - On State (It (AV)) (Max)32 A
• Voltage - Gate Trigger (Vgt) (Max)2.5 V
• Voltage - On State (Vtm) (Max)1.8 V
• Current - Off State (Max)3 mA
• Supplier Device PackageTO-208AA (TO-48)
• Current - On State (It (RMS)) (Max)50 A
• Voltage - Off State1.6 kV
