Product Specifications
  • AttributesAttribute Value
  • ManufacturerLittelfuse / IXYS RF
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity20

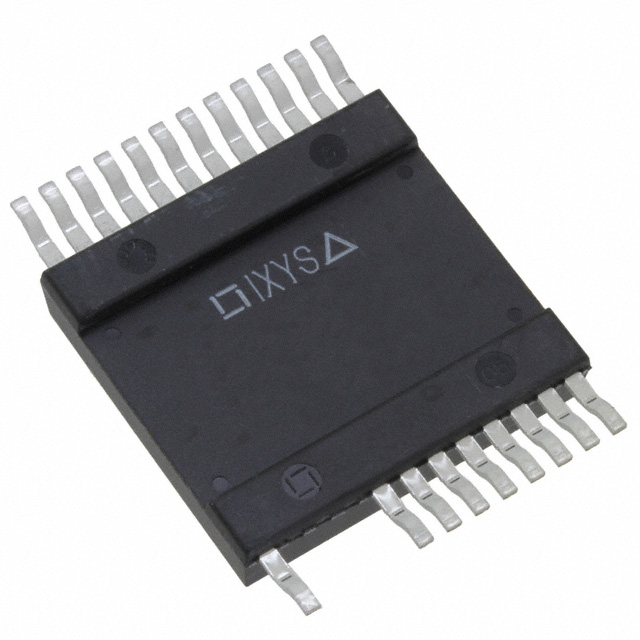

  • DescriptionIGBT 600 V 145 A 400 W Surface Mount 24-SMPD
  • Package / Case24-PowerSMD, 21 Leads
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Input TypeStandard
  • Reverse Recovery Time (trr)140 ns
  • Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 70A
  • Supplier Device Package24-SMPD
  • Td (on/off) @ 25°C30ns/120ns
  • Switching Energy1.9mJ (on), 2mJ (off)
  • Test Condition360V, 70A, 2Ohm, 15V
  • Gate Charge143 nC
  • Current - Collector (Ic) (Max)145 A
  • Voltage - Collector Emitter Breakdown (Max)600 V
  • Current - Collector Pulsed (Icm)440 A
  • Power - Max400 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new MMIX1X100N60B3H1 from Littelfuse / IXYS RF only.
